DELPHI TC6399 Part Description
Manufacturer
Product Description

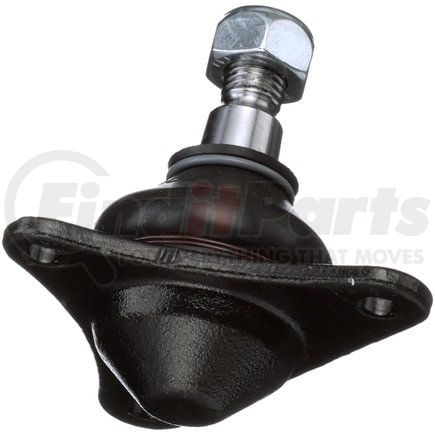

Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC6399 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Color | Black |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 67 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 0.787 IN |
| Mounting Bolt Length | 20.00 MM |
| Washers Included | Yes |
| Height | 3.150 IN |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.728 IN |
| Wrench Size | 13mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 8.00 MM |
| Mounting Bolt Head Diameter | 0.571 IN |
| Mounting Bolt Head Diameter | 14.50 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 17.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.1 IN |
| Stud Tapered End 2 Diameter | 0.571 IN |
| Stud Tapered End 2 Diameter | 14.5 MM |
| Stud Tapered End 1 Diameter | 0.65 IN |
| Stud Tapered End 1 Diameter | 16.5 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 94.00 MM |
| Length | 3.700 IN |
| Stud Thread Diameter | 0.47 IN |
| Height | 80.01 MM |
| Stud Thread Length | 18.49 MM |
| Mounting Bolt Shank Diameter | 0.310 IN |
| Mounting Bolt Thread Length | 0.670 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604341636 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
DELPHI TC6399 Cross References
| Brand | Part Number |
|---|---|
| Dorman | 536-959 |
| MEVOTECH | MS10553 |
| MOOG Chassis Products | K9594 |
| Mercedes-Benz | 115-330-3807 |
| N/A | 101-3135, MS10553, 115-330-3907, A1153303907, 115-333-0827, A1153330827 |
| TRW | JBJ342 |
DELPHI TC6399 Fits Vehicles
- Mercedes-Benz 250 (1968-1972)
- Mercedes-Benz 250C (1969-1972)
- Mercedes-Benz 220D (1968-1973)
- Mercedes-Benz 220 (1968-1973)
- Mercedes-Benz 450SLC (1973-1980)
- Mercedes-Benz 450SL (1973-1980)
- Mercedes-Benz 380SLC (1981)
- Mercedes-Benz 380SL (1981-1985)
- Mercedes-Benz 300D (1975-1976)
- Mercedes-Benz 280C (1973-1976)
- Mercedes-Benz 240D (1974-1976)
- Mercedes-Benz 280 (1973-1976)
- Mercedes-Benz 230 (1974-1976)
