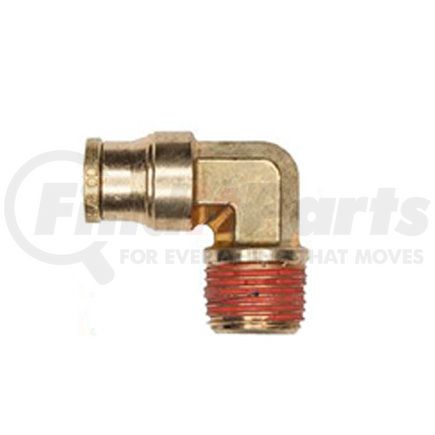

(888) 312-8812 Login SignupHALDEX APB69F4X2 Air Brake Air Line Connector Fitting - Male 90° Elbow, 1/4 Tube Size, 1/8 Pipe Thread
MSRP: $7.76
$549
Save $2.27
Limited availability at this price!
In Stock
Get it by Friday, Jul 17
HALDEX APB69F4X2 Part Description
Manufacturer
Product Description
Brass Male 90° Elbow 1/4T 1/8P Sold in quantities of 10
Features & Benefits
- With a typical temperature range from -40° to 220°F
- Made compatible with SAE J844 air brake tubing
- With CA360 and CA377 brass construction for superior durability
- Lighter and stronger than competing units with extruded designs
- Built to offer years of reliable use
- Proudly made in the USA
Haldex Midland Brass Male 90° Elbow
The Haldex Midland brass male 90° elbow is a crucial air brake system component specifically designed to change the angle or direction of the air lines. A part of Haldex’s comprehensive range of air brake air line connector fittings, this standard air-push connect fitting with forged brass design is made to conform and meet FMVSS 571.10, SAE J1131, J2494 1, and J2494 3 air brake performance requirements.
HALDEX APB69F4X2 Specifications
Product Attributes
| Axis 1 Length | 1.01 in. |
| Axis 2 Length | 0.79 in. |
| Connector Gender | Male |
| Family | Standard |
| Fitting Inlet Angle | 90 Degree |
| Freight Class | 70 |
| Material | Brass |
| Pipe Diameter | 1/8 in. NPT |
| Tubing Inside Diameter | 1/4 in. |
| Type | Fixed Elbow |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7412200035 |
| Harmonized Tariff Code (HTS) | 7412200035 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | 24 MO, 200,000 MI=All Other Tour Bus, Intercity Transit Products Not Listed(8). 12MO,100,000 MI= All Other New Products Not Listed(13), City Transit Oper.(9) (All New Products), Friction Products(7), New Clutches(6). See L20221W.pdf for warranty details |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653384436 |
| VMRS Code | 013010002 |
HALDEX APB69F4X2 Cross References
| Brand | Part Number |
|---|---|
| Alkon Corp | AQ69-DOT-4X2 |
| Automann | 177.13B154A |
| N/A | 169PMTNS-4-2, 017960, 1869X4, AQ69-DOT-4X2, PL1315-4A, 177.13B154A, S269PMTNS-4-2 |
| Parker | 169PMTNS-4-2 |
| Tectran | PL1315-4A |
| Tramec Sloan | S269PMTNS-4-2 |
| Velvac | 017960 |
| Weatherhead | 1869X4 |
