Name: Red Dot R-6160-0-24 CONDENSER
SKU: r6160024
Availability: OutOfStock

RED DOT part description

California Proposition 65 Warning

WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)

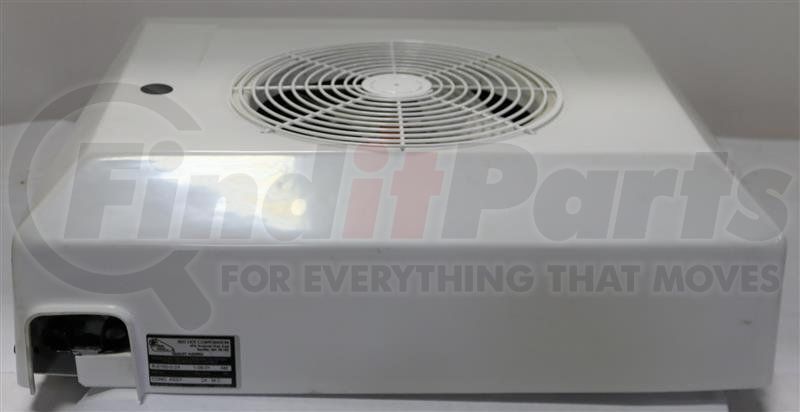

The Red Dot Rooftop Mount A/C Condenser R-6160-0-24P is a compact, rugged rooftop condenser that features a voltage rating of 24 volts, 24,000 BTU/hr capacity and 1500 CFM airflow. This condenser unit comes with 22.5" length, 7.4" height and 25.3" width. It also has a low profile for cabs with minimal roof space or aerodynamic fairings.

PRODUCT SPECIFICATIONS:

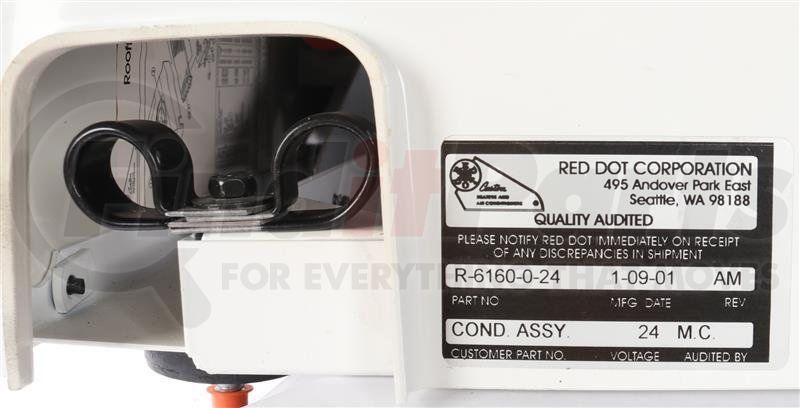

Red Dot Part No.: R-6160-0-24P
Red Dot Factory Part No.: R-6160-0-24P
Air Source Part No.: 10-9386
Freightliner Part No.: RDH R6160 0 24
Mack Part No.: 4379-R6160024
Western Star Part No.: 61203-3415
Description: Rooftop A/C Condenser
Application: Trucks, Construction, Agriculture
Manufacturer: Red Dot
Model: R6160-0
Voltage: 24V
Length: 22.5"
Height: 7.4"
Width: 25.3"
Air Flow: 1500 CFM
Capacity: 24,000 BTU/Hr (6,048 kcal/h)
Current Draw: 12 amps @ 13.6 VDC (includes 4 amps for A/C clutch) 6 amps @ 27.2 VDC (includes 2 amps for A/C clutch)

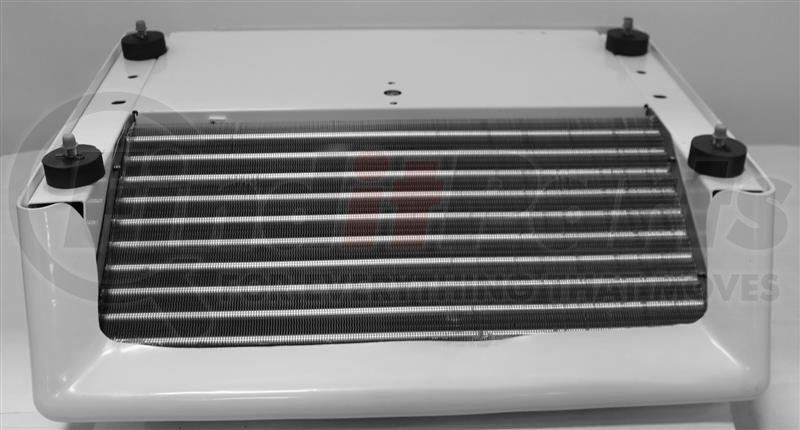

Condenser Coil: The coil is aluminum fin and copper tube construction, this material selection, which includes a tube of .022" (6 cm) wall thickness, results in an effective, lightweight rugged coil.
Motor: The motor is a permanent magnet type selected for its extended life. The motor is sealed and a slinger ring and hub cap have been added for weather protection. The fan is aluminum with a heavy duty spider and riveted blades.
Weight: 23 lbs. (10.5 kg) Lightweight
Mount Type: Roof Mount
Refrigerant Type: R12/R134a
Note: Condenser Only not a complete A/C Unit

RED DOT R-6160-0-24 Cross Reference

We have 1 alternatives for the R-6160-0-24 by RED DOT:

MEI 50-9386

Red Dot Corporation® is a leading manufacturer of premium mobile HVAC units and components for commercial vehicles, heavy duty trucks, and military vehicles. It ships to hundreds of OE customers and aftermarket distributors worldwide through its facilities in Europe, Asia, and North America. To ensure the highest level of quality, Red Dot combines world-class engineering and rigorous testing when manufacturing its premium HVAC units. It also supports its customers' replacement part needs by making these available through a global network of authorized dealers. Founded in 1965, Red Dot is headquartered in Seattle, WA, and it is certified to ISO 9001 and ISO 14001 since 1994.
