(888) 312-8812 Login SignupREACH COOLING 31-3525 A/C Condenser
Tap to view 3 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
REACH COOLING 31-3525 Part Description
Manufacturer
Product Description
A/C Condenser
Application Summary
Acura:2006-2011 CSX; Honda:2006-2011 Civic
Features & Benefits
- Reach condensers feature a parallel flow design to increase cooling efficiency.
- Tube-and-fin configuration strictly follows OEM design to ensure maximum heat transfer and performance during pressure drop.
- Our fin edges are folded for increased stability and heat disbursement properties.
- All our tubes are zinc coated to better handle salt corrosion, especially for areas near the coast or with heavy snow.
- Reach condensers are designed and manufactured with OE performance and fit as our top priority. By utilizing topnotch materials, designs, and manufacturing techniques, we ensure that our condensers have the best quality and reliability.
- All brackets and fittings are made with virgin aluminum to ensure purity of material and strength in brazing bond.
- Our tubes feature a 5mm fin height which allows for a greater cooling surface.
- Our condensers are designed and manufactured with OE performance and fit as our top priority. By utilizing topnotch materials, designs, and manufacturing techniques, we ensure that our condensers have the best quality and reliability.
- Our condensers feature a parallel flow design to increase cooling efficiency.
No Shipping Restriction
condenser, air conditioning, ac condenser, a/c, cond, parallel flow, accumulator

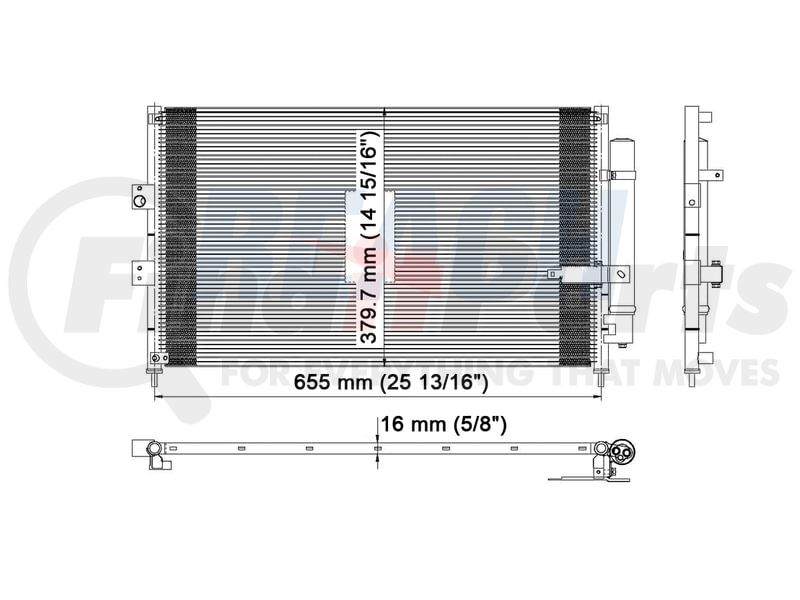

REACH COOLING 31-3525 Specifications
Product Attributes
| Outlet Location | Lower Left |
| Core Width | 379.4 MM |
| Mounting Hardware Included | Seals and Gaskets not included |
| Includes Drier | Yes |
| Core Length | 25.812 IN |
| Inlet Location | Center Left |
| Core Thickness | 0.625 IN |
| Condenser Core Type | Parallel Flow |
| Core Length | 655.6 MM |
| Core Thickness | 15.9 MM |
| Core Width | 14.937 IN |
| Core Material | Aluminum |
| Outlet Location | Bottom Left |
| Inlet Location | Center Left |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 06949521719852 |
REACH COOLING 31-3525 Cross References
| Brand | Part Number |
|---|---|
| 1-800-Radiator | 300089, 300099, 303440 |
| APC | 203525, 203531 |
| APC Inc | 203525U, 203525, 203531 |
| APDI | 7013525 |
| APDI RADS | 7013525 |
| Acura | 80110SNAA41, 80110SNAA42, 80110SNAA02 |
| Advance Auto Parts | 6358 |
| American Condenser by Vista-Pro | P50498P, 1050499, P40498P, P40499P, 1050498 |
| AutoNation | 6708-00690, 6708-00694 |
| AutoZone | 7-3525 |
| Autokool | 3525, 3531 |
| Besuto | BES3525 |
| CRS | AC3525 |
| CRS Automotive | AC3525 |
| CSF | 10444, 10445, 10483, 10484 |
| Cancore Industries | 3525, 3531 |
| CryoMAX | 0A003531PFYH, 0A003525PFYH, 3525, 3531 |
| DAWSON | C-0403M, C0403M |
| DENSO | 4770633 |
| DPI DataPoint Inc | 3525, 3531 |
| Dixin USA | DX3525 |
| FVP | CON3525 |
| Factory Air | CON3525 |
| Federated | 3525 |
| Fisher | 7-3525, 7-3531 |
| Four Seasons | 40223 |
| Frontera | 3525AM, 3531AM |
| GLOBAL PARTS DISTRIBUTORS | 3525C |
| Genera - Archived | 3525 |
| Gilmore Products | AUC3525 |
| Global Heat Transfer | 3525, 3525C, 3531, 3531C |
| Honda | 80110SNAA42, 80102SVAA01, 80102SVAA02, 80102SVAA03, 80102SVAA11, 80102SVAA12, 80110SA02, 80110SNAA01, 80110SNAA02, 80110SNAA41 |
| Keystone Auto Industries | CNDDPI3525, CNDDPI3531 |
| Klimoto | KLI3525 |
| Kool Vue | KVAC3531, KVAC3525 |
| Koyo | CD080595, CD080955S |
| Lynol Cooling Systems | AC3525 |
| Murray Heat Transfer | 7-3525 |
| NAPA | 73525, 73531, NC3525A |
| NRF | 35865, 8981 |
| Nissens | 940197, 940362 |
| Northern Factory Sales | 82033, CD82032, CD82033 |
| Northern Radiator | CD82032, CD82033 |
| OSC | 3525, 3531, 73525 |
| Omega | 24-15010, 2415010 |
| Omega Environmental Technologies | 2415010 |
| PACIFIC BEST INC. | PC3525P, PC3525, PC3531P |
| PACO | PL3565RD, PL3564RD |
| PBI | PC3525P |
| Partslink | HO3030143, HO3030140, HO3030141, HO3030144 |
| Performance Radiator | 3515, 3521 |
| Platinum Pro | CNDDPI3525, CNDDPI3531 |
| Pro Parts | 35865 |
| Proliance | 640457, 640455 |
| RadCool | 3525 |
| Spectra Premium | 7-3525, 73525 |
| Sunbelt Radiators Inc | SBC-3525 |
| TYC | 3525 |
| TYG | HD39037B, HD39037A |
| Tongshi | 8874020 |
| UAC | CN3525PFC, CN 3525PFC |
| UNIVERSAL AIR CONDITIONER (UAC) | CN3525PFC |
| Valeo | 814182 |
| Vision | 3531P, 3525P |
| Vista Pro | 1050498, 6358, 640455, 640457 |
| Visteon | 6358 |
| XINTIAN | AC32008 |
REACH COOLING 31-3525 Fits Vehicles
- Acura CSX (2006-2011)
- Honda Civic (2006-2011)
REACH COOLING 31-3525 Customer Reviews
No reviews yet
Be the first to review this product!
REACH COOLING 31-3525 Questions & Answers
No questions yet
Be the first to ask a question about this product!
