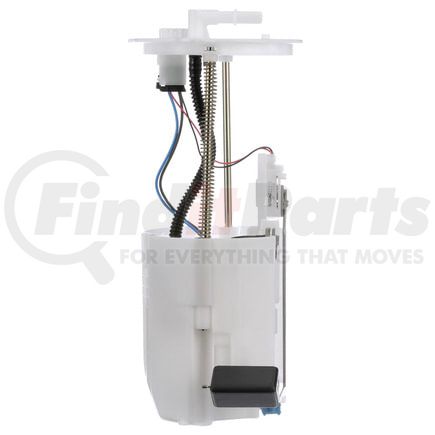

DELPHI FG2205 Part Description
DELPHI FG2205 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| System Pressure | 51 psi |
| Vapor Pressure Sensor | No |
| Fuel Level Sender Assembly Included | Yes |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Instruction Sheet |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 1 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 204 82 |
| Resistance Ohms Full | 10 82 |
| Internal Or External Strainer | Internal |
| Pump Type | Electric |
| Average Current Draw | 7 68 |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Maximum Pressure | 60 PS |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Square |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 51 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Average Flow Rating | 18 GPH |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 9026204000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TH |
| UPC | 00689604295601 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG2205 Part Interchanges
| Brand | Part Number |
|---|---|
| Spectra Premium | SP1118, SP4106M |
| AutoZone | DFG2205 |
| Mazda | L3M8-13-ZE1, L3M8-13-ZE1A, LFB6-13-ZE1, LFG1-13-35XA, LFG1-13-35ZA, NE51-60-960 |
| Airtex | E8229, E8796M |
| Import Direct | A46510 |
DELPHI FG2205 Fits Vehicles
- Mazda MX-5 Miata (2006-2015)
