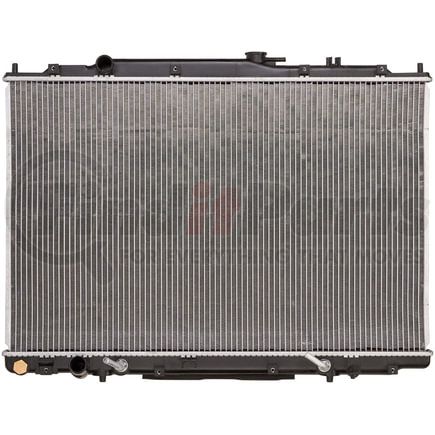

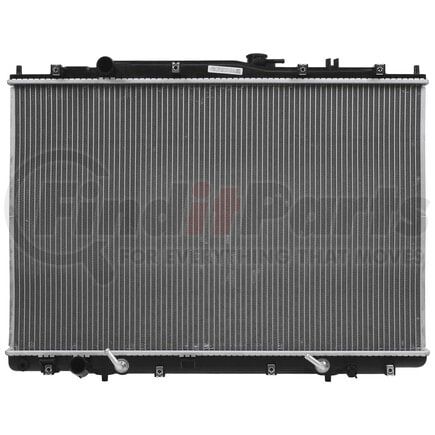

REACH COOLING 41-2417 Part Description
Manufacturer
Product Description
Radiator
Features & Benefits
- Our B-type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
- Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
- Our fin edges are folded for increased stability and heat disbursement properties.
- Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
- Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
- We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
- We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
No Shipping Restriction
REACH COOLING 41-2417 Specifications
Product Attributes
| Outlet Header Length | 31.312 IN |
| Core Thickness | 0.625 IN |
| Core Width | 768.4 MM |
| Inlet Header Length | 31.312 IN |
| Core Height | 19.687 IN |
| Core Height | 500.1 MM |
| Core Material | Aluminum |
| Inlet Header Width | 34.9 MM |
| Transmission Oil Cooler Distance between Fittings | 14.75 IN |
| Core Thickness | 15.9 MM |
| Tank Material | Plastic |
| Inlet Header Length | 795.3 MM |
| Transmission Oil Cooler Included | Yes |
| Core Width | 30.25 IN |
| Outlet Location | Bottom Left |
| Outlet Header Width | 1.375 IN |
| Inlet Header Width | 1.375 IN |
| Outlet Header Length | 795.3 MM |
| Outlet Header Width | 34.9 MM |
| Radiator Cap Included | No |
| Inlet Diameter | 1.25 IN |
| Inlet Location | Top Left |
| Transmission Oil Cooler Type | Concentric |
| Transmission Oil Cooler Distance between Fittings | 374.7 MM |
| Outlet Diameter | 31.8 MM |
| Outlet Diameter | 1.25 IN |
| Inlet Diameter | 31.8 MM |
| Core Row Quantity | 1 |
| Down Flow Or Cross Flow Type | Down Flow |
| Engine Oil Cooler Included | No |
Additional Information
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (HTS) | 8708915000 |
| UPC | 08859869501676 |
| VMRS Code | 042002001 |
| UNSPSC | 25174002 |
REACH COOLING 41-2417 Cross References
| Brand | Part Number |
|---|---|
| 1-800-Radiator | 2417 |
| APDI | 8012417 |
| APDI RADS | 8012417 |
| Acura | 19010-PGK-A51, 19010PGKA51, 19010RDJA52, 19010PHGKA51 |
| Advance Auto Parts | 432458 |
| AutoNation | 19812-00007 |
| AutoZone | B2417 |
| Autokool | 2417 |
| BEHR | 376748421 |
| Besuto | BES2417 |
| CRS | CUC2417 |
| CRS Automotive | CUC2417, CRS2417 |
| CSF | 3166, 3472 |
| Cancore Industries | C2417 |
| CryoMAX | 0R-002417-A1CM, 0R002417A1CM, 2417 |
| DENSO | 2213217 |
| DPI DataPoint Inc | 2417 |
| Dixin USA | DX2417 |
| Factory Air | RAD2417 |
| Federated | 2417 |
| Fisher | CU2417 |
| Four Seasons | 2915 |
| Frontera | AM2417 |
| GLOBAL PARTS DISTRIBUTORS | 2417C |
| Genera - Archived | 2417 |
| Honda | 19010PHGKA51, 19010-PGK-A51, 19010PGKA51, 19010RDJA52 |
| Keystone Auto Industries | RAD2417 |
| Klimoto | KLI2417 |
| Koyo | A2417, A2417-1, A24171 |
| Lynol Cooling Systems | LR2417 |
| Modine | 2859 |
| Murray Heat Transfer | 432458 |
| NAPA | 2859, NR2417B |
| NRF | 56055 |
| Nissens | 69482 |
| Northern Factory Sales | 69482 |
| Northern Radiator | CR2417 |
| OSC | 2417, USR2417 |
| Omega | 2402417 |
| Onix | OR2417 |
| PACIFIC BEST INC. | PR2417A |
| PBI | PR2417A |
| Partslink | HO3010185, AC3010107 |
| Performance Radiator | 2695 |
| Platinum Pro | RAD2417 |
| Pro Parts | 56055 |
| Proliance | 432458 |
| RadCool | 2417 |
| Reach Cooling | REA412417A |
| Spectra Premium | CU2417 |
| Sunbelt Radiators Inc | SBR2417 |
| TYC | 2417 |
| TYG | HD37035A |
| Tongshi | 74023 |
| UAC | RA 2417C, RA2417C |
| US Motor Works | USR2417 |
| Valeo | 376103, VS2417 |
| Vision | 2417 |
| Vista Pro | 432458, 9693 |
| Visteon | 9693 |
REACH COOLING 41-2417 Fits Vehicles
- Honda Pilot (2003-2004)
- Acura MDX (2001-2002)
