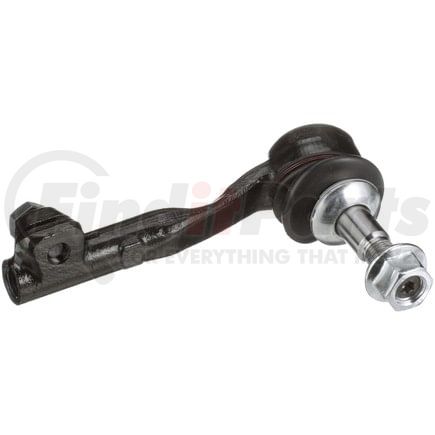

Need help? We're here!
(888) 312-8812 Login SignupDELPHI TA5561 Tie Rod End
Tap to view 20 more
$5699
Limited availability at this price!
5 Day Lead Time
Get it by Friday, Feb 27
DELPHI TA5561 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5561 Specifications
Product Attributes
| Position(s) | Right Outer |
| Item Grade | Standard Replacement |
| Length | 168.00 MM |
| Color | Black |
| End 1 Gender | Female |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 44 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 14.00 MM |
| Height | 107.00 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.8 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 146.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 14.00 MM |
| Grade Type | Standard Replacement |
| Locking Nut Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| Length - Stud Center to End | 5.748 IN |
| End 1 Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604315828 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
DELPHI TA5561 Cross References
DELPHI TA5561 Fits Vehicles
- BMW 430i xDrive (2017-2019)
- BMW 440i xDrive Gran Coupe (2017-2020)
- BMW 430i xDrive Gran Coupe (2017-2020)
- BMW 440i xDrive (2017-2020)
- BMW 330i xDrive (2017-2018)
- BMW 230i xDrive (2017-2021)
- BMW 330i GT xDrive (2017-2019)
- BMW 340i GT xDrive (2017-2019)
- BMW M240i xDrive (2017-2020)
- BMW 340i xDrive (2016-2018)
- BMW 328i GT xDrive (2014-2016)
- BMW M235i xDrive (2015-2016)
- BMW 228i xDrive (2015-2016)
- BMW 428i xDrive Gran Coupe (2015-2016)
- BMW 435i xDrive Gran Coupe (2015-2016)
- BMW 328d xDrive (2014-2018)
- BMW 335i xDrive (2014-2015)
- BMW 335i GT xDrive (2014-2016)
- BMW 428i xDrive (2014-2016)
- BMW 435i xDrive (2014-2016)
- BMW 320i xDrive (2013-2018)
- BMW 328i xDrive (2013-2016)
DELPHI TA5561 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI TA5561 Questions & Answers
No questions yet
Be the first to ask a question about this product!
