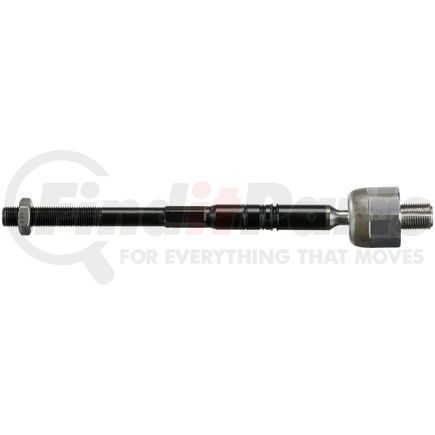

DELPHI TA3230 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA3230 Specifications
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Length | 282.00 MM |
| Color | Black and Gray |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | No |
| Width | 40 MM |
| Type | Straight |
| Mounting Hardware Included | No |
| End 2 Thread Diameter | 18.00 MM |
| Height | 40.00 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.32 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 9.465 IN |
| Length - Stud Center to End | 240.40 MM |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 17 |
| End 1 Thread Diameter | 14.00 MM |
| Grade Type | Standard Replacement |
| Locking Nut Included | Yes |
| End 2 Thread Diameter | 0.709 IN |
| End 1 Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604299845 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
DELPHI TA3230 Cross References
| Brand | Part Number |
|---|---|
| BMW | 32 10 6 768 879, 32 10 6 793 621 |
| CORTECO | 49399471, 49400235 |
| MAS Industries | TA14131 |
| MEVOTECH | MS10748 |
| MEYLE | 3160310008 |
| MOOG Chassis Products | EV800564, 101-8350 |
| N/A | 32 10 6 793 622, MS10709, JAR1007, 32 10 6 768 880, 612.34018 |
| TRW | JRA591 |
DELPHI TA3230 Fits Vehicles
- BMW X1 (2012-2015)
- BMW 328i xDrive (2009-2013)
- BMW 335i xDrive (2009-2013)
- BMW 335xi (2007-2008)
- BMW 328xi (2007-2008)
- BMW 325xi (2006)
- BMW 330xi (2006)
