REACH COOLING part description

Product Description

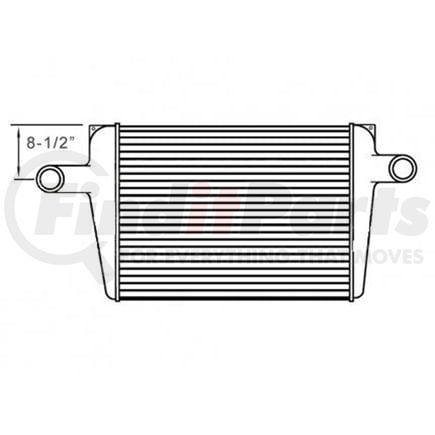

Charge Air Cooler

Application Summary

Volvo:98-99 VN/2000-2009 VNM/96-2003 WX

Features & Benefits

  • 7 Layer Packaging: Each charge air cooler is packaged in a heavy duty, 7 layer corrugated box to ensure best protection during transit.
  • Reach charge air coolers are built to withstand the pressures of long hauls. From the product design to the package it is shipped in, every consideration is taken to ensure longevity and peak performance.
  • Reinforced Aluminum Alloy: Header reinforced with aluminum bronze to increase strength by 50%.
  • Deep Extrusion Header: Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion.
  • Reinforcement Rib: Tubes feature a reinforcing rib to increase material strength.
  • Header Plate Bond: We use a wider angle header plate bond to eliminate the risk of header cracking.
  • Flat Tube Wall Thickness: Flat tube wall thickness is no less than .55mm to maximize ability to withstand added pressure.

Product Attributes

Core Height 30 7/8 IN
Core Thickness 44.45 MM
Inlet Outside Diameter 3 3/8 IN
Core Length 608.01 MM
Core Row Quantity 1
Outlet Outside Diameter 3 3/8 IN

Additional Information

Country of Origin (Primary) CN
UPC 06941099912116

Part Interchanges

Fits Vehicles

  • Volvo VNM (2000-2009)
  • Volvo WX (1996, 1999-2003)
  • Volvo VN (1998-1999)
