CENTRIC part description

Product Description

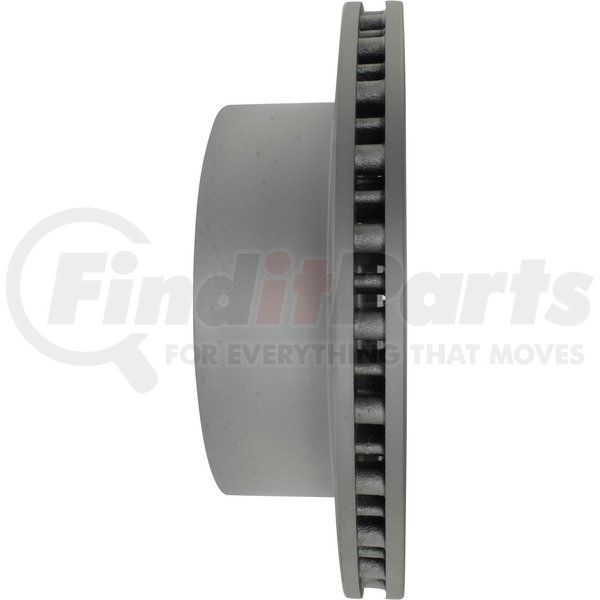

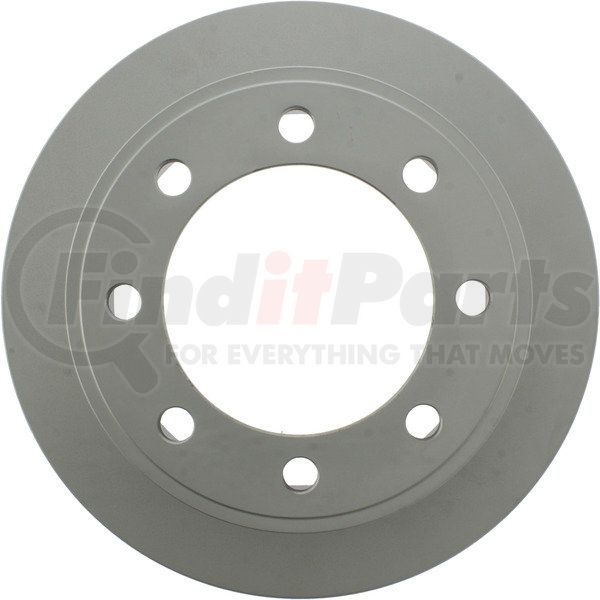

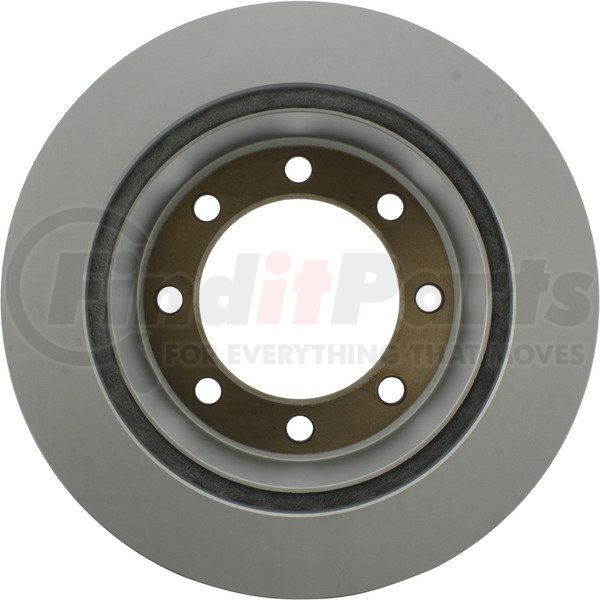

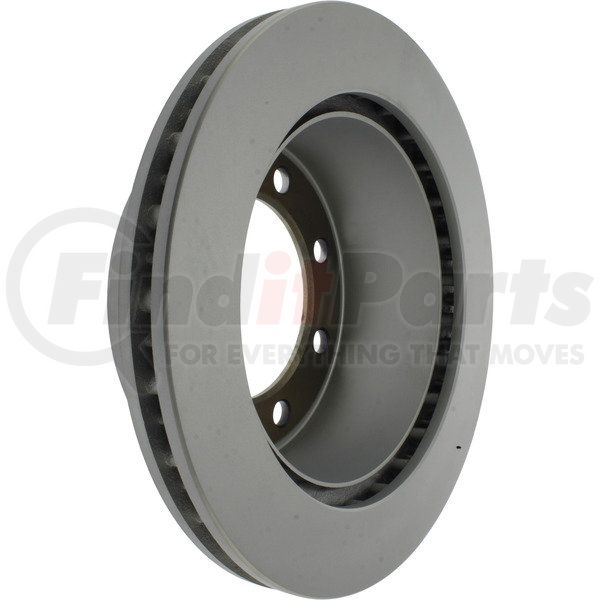

Centric GCX Rotor with Full Coating

Application Summary

Ford E-150 2007, E-150 Econoline 2007, E-250 2007-2003, E-250 Econoline 2002-2001, E-350 Club Wagon 2005-2002, E-350 Econoline 2000-1999, E-350 Econoline Club Wagon 2002-1999, E-350 Super Duty 2007-1999

Features & Benefits

  • RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs

Centric; Centric Parts; GxC Brake; GxC Rotor; Brake Rotor

Product Attributes

Discard Thickness 1.102 IN
Nominal Thickness 30.000 MM
Disc Finish Fully Coated
Hat Finish Coated
Overall Height 98.800 MM
Outside Diameter 326.000 MM
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Nominal Drum Diameter 8.114 IN
Bearings Included No
Center Hole Diameter 5.000 IN
Mounting Bolt Hole Circle Diameter 165.100 MM
Stud/Lug Hole Quantity 8
Stud/Lug Hole Diameter 16.000 MM
California Proposition 65 Text [basic] WARNING: Cancer and Reproductive Harm
Disc Mounting [cntrc] Floating / DIH
Max Pb Drum Dia [cntrc] In 8.157
Max Pb Drum Dia [cntrc] Mm 207.200
Misc Holes [cntrc] 0
Vane Style [cntrc] Pillar
Weight [cntrc] Kgs 10.910
Weight [cntrc] Lbs 24.000

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (HTS) 8708305030
NAFTA Preference Criterion Code B
UPC 00889590392760

Part Interchanges

CENTRIC 320.65078F Cross Reference

We have 3 alternatives for the 320.65078F by CENTRIC:

Fits Vehicles

  • Ford E-350 Econoline Club Wagon (1999-2002)
  • Ford E-350 Econoline (1999-2000)
  • Ford E-250 Econoline (2001-2002)
  • Ford E-150 (2007)
  • Ford E-150 Econoline (2007)
  • Ford E-350 Super Duty (1999-2007)
  • Ford E-350 Club Wagon (2002-2005)
  • Ford E-250 (2003-2007)
