CENTRIC 320.63064F - GCX Rotor with Full Coating
$9049
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description

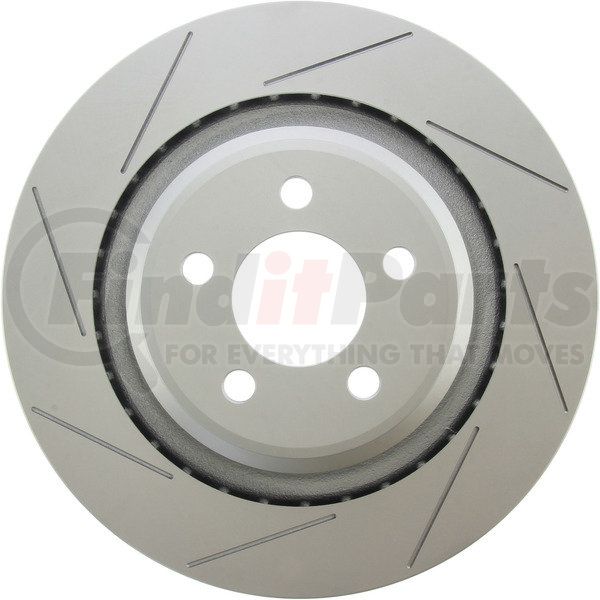

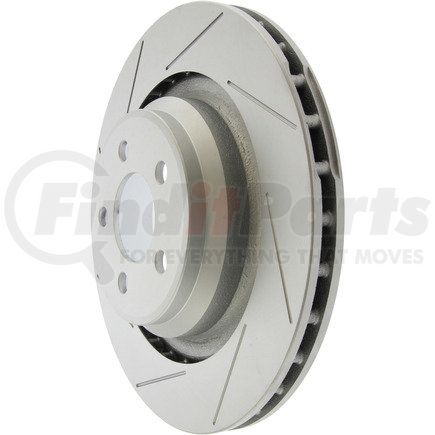

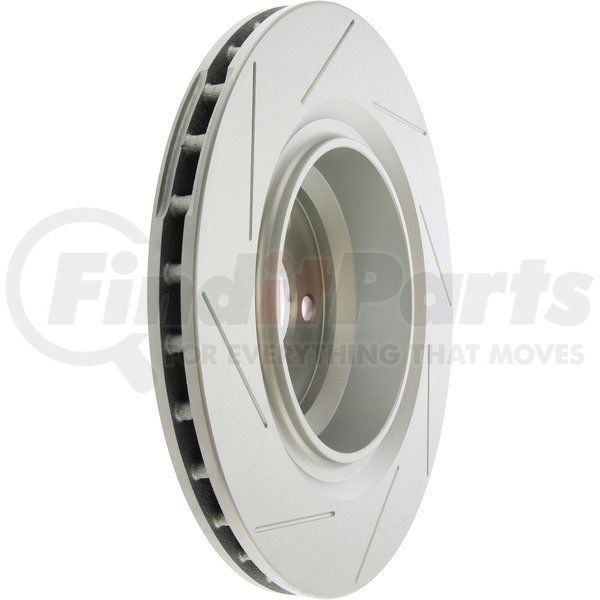

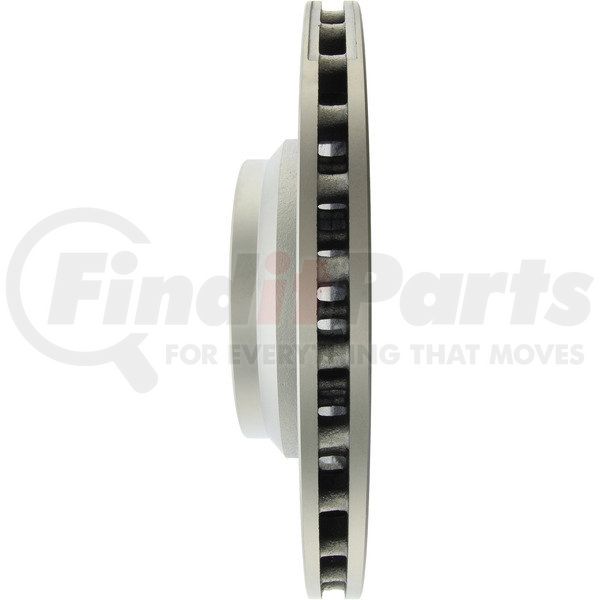

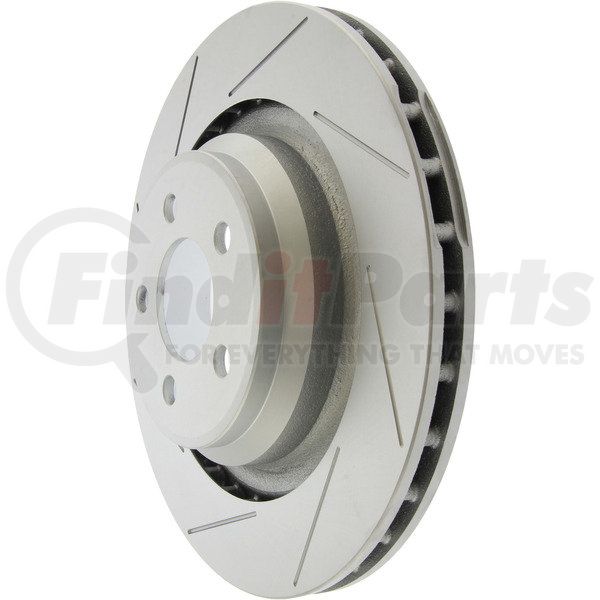

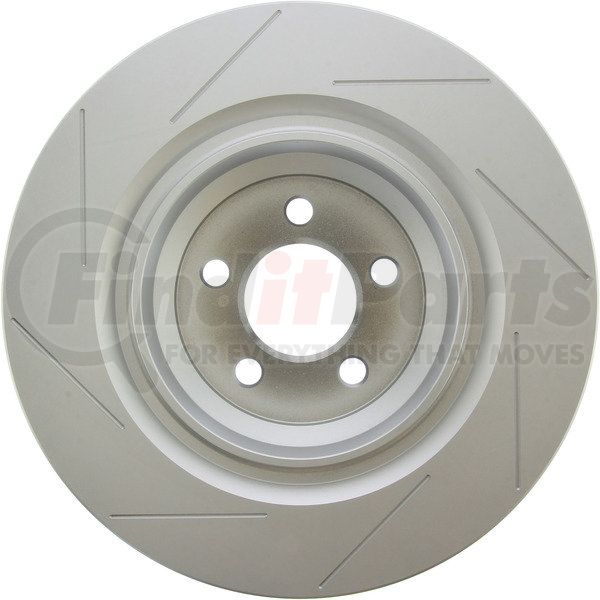

Centric GCX Rotor with Full Coating
Application Summary
Chrysler 300 2010-2005, 300 2014-2012, 300 2019-2017, Dodge Challenger 2019-2008, Charger 2010-2006, Charger 2021-2012, Magnum 2008-2006
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
C-Tek; Centric; Standard brake rotor; brake rotor; break rotor; rotors; rotor
Product Attributes
| Discard Thickness | 1.024 IN |
| Nominal Thickness | 28.000 MM |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 68.400 MM |
| Outside Diameter | 13.780 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 7.244 IN |
| Bearings Included | No |
| Center Hole Diameter | 72.600 MM |
| Mounting Bolt Hole Circle Diameter | 115.000 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 16.700 MM |
| California Proposition 65 Text [basic] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating / DIH |
| Max Pb Drum Dia [cntrc] In | 7.264 |
| Max Pb Drum Dia [cntrc] Mm | 184.500 |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Pillar |
| Weight [cntrc] Kgs | 10.570 |
| Weight [cntrc] Lbs | 23.250 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00889590392296 |
Part Interchanges
CENTRIC 320.63064F Cross Reference
We have 3 alternatives for the 320.63064F by CENTRIC:
Fits Vehicles
- Dodge Magnum (2006-2008)
- Dodge Challenger (2008-2019, 2022)
- Dodge Charger (2006-2010, 2012-2022)
- Chrysler 300 (2005-2010, 2012-2014, 2017-2019)
