Centric 320.63010F - Centric GCX Rotor with Full Coating
$8699
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

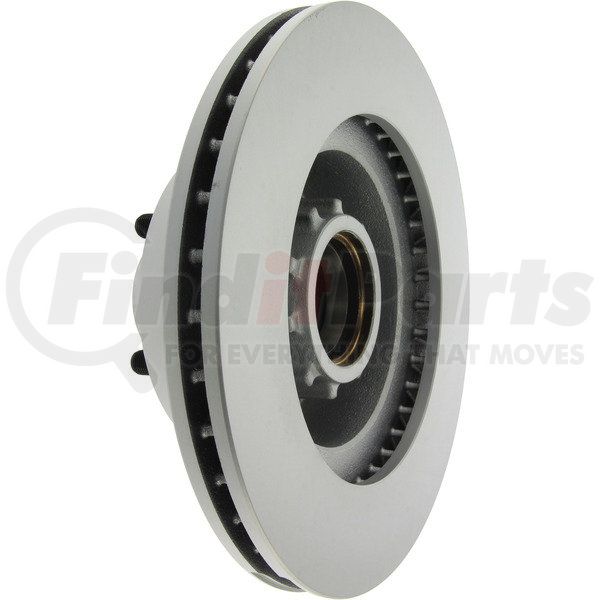

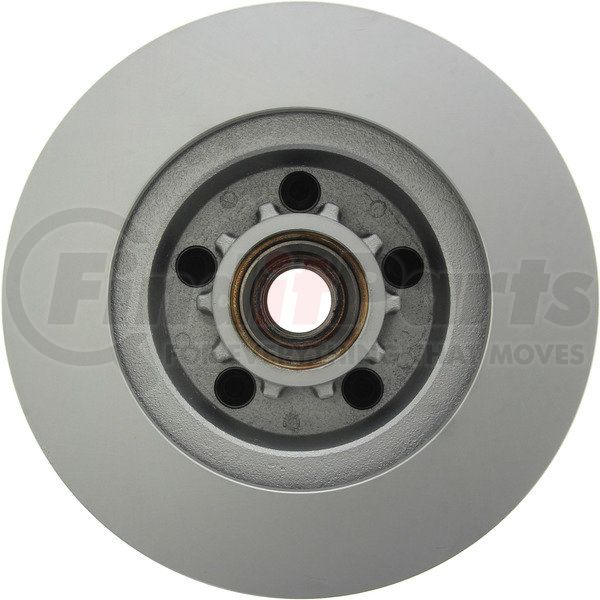

Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Outer Bearing # [cntrc] | 410.91002 |
| Misc Holes [cntrc] | 0 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Weight [cntrc] Lbs | 25.100 |
| Inner Bearing # [cntrc] | 410.91017 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Kgs | 11.410 |
| Inner Seal # [cntrc] | 417.63004 |
| Vane Style [cntrc] | Straight |
| Discard Thickness | 23.880 MM |
| Discard Thickness | 0.940 IN |
| Nominal Thickness | 26.040 MM |
| Nominal Thickness | 1.025 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.500 IN |
| Overall Height | 123.200 MM |
| Overall Height | 4.850 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 278.900 MM |
| Rotor Outside Diameter | 10.980 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 20.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 71.000 MM |
| Center Hole Diameter | 2.795 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590392128 |
Part Interchanges
CENTRIC 320.63010F Cross Reference
We have 1 alternatives for the 320.63010F by CENTRIC:
Fits Vehicles
- Dodge Diplomat (1977-1989)
- Dodge Aspen (1976-1980)
- Chrysler Town & Country (1977-1981)
- Chrysler New Yorker (1982)
- Chrysler LeBaron (1977-1981)
- Chrysler Imperial (1981-1983)
- Chrysler Fifth Avenue (1983-1989)
- Chrysler Cordoba (1975-1976, 1980-1983)
- Chrysler Valiant (1975-1980, 1982-1983)
- Dodge Ram 1500 Van (1995-1997)
- Plymouth Satellite (1973-1974)
- Plymouth Cuda (1973-1974)
- Plymouth Barracuda (1973-1974)
- Plymouth Volare (1976-1980)
- Plymouth Valiant (1973-1976)
- Plymouth Scamp (1973-1976)
- Plymouth Road Runner (1973-1975)
- Dodge Mirada (1980-1983)
- Dodge Dart (1973-1977, 1982)
- Dodge Coronet (1973-1976)
- Dodge Charger (1973-1976)
- Dodge Challenger (1973-1974)
- Plymouth Gran Fury (1982-1989)
- Plymouth Fury (1975-1976)
- Plymouth Duster (1973-1976)
