CENTRIC 320.61053F Part Description
Manufacturer
Product Description

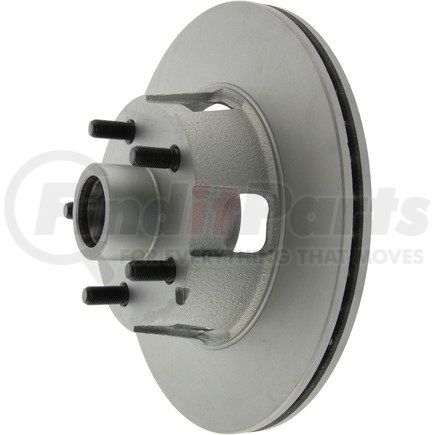

Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.61053F Specifications
Product Attributes
| OEM Vane Count [cntrc] | 40 |
| Misc Holes [cntrc] | 0 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Weight [cntrc] Lbs | 18.400 |
| Outer Bearing # [cntrc] | 410.91002 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Notes [cntrc] | Vented Hat |
| Vane Style [cntrc] | Straight |
| Inner Bearing # [cntrc] | 410.91006 |
| Inner Seal # [cntrc] | 417.61000 |
| Weight [cntrc] Kgs | 8.360 |
| Discard Thickness | 19.800 MM |
| Discard Thickness | 0.780 IN |
| Nominal Thickness | 21.000 MM |
| Nominal Thickness | 0.827 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.500 IN |
| Overall Height | 58.600 MM |
| Overall Height | 2.307 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 287.900 MM |
| Rotor Outside Diameter | 11.335 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 20.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 82.600 MM |
| Center Hole Diameter | 3.252 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.800 MM |
| Stud/Lug Hole Diameter | 0.622 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590391114 |
CENTRIC 320.61053F Cross References
CENTRIC 320.61053F Fits Vehicles
- Mercury Villager (1967)
- Mercury Voyager (1967)
- Mercury Cyclone (1966-1967)
- Mercury Cougar (1967)
- Mercury Comet (1966-1967)
- Mercury Caliente (1967)
- Ford Ranchero (1967)
- Ford Mustang (1964-1967)
- Ford Falcon (1965-1967)
- Ford Fairlane (1967)
