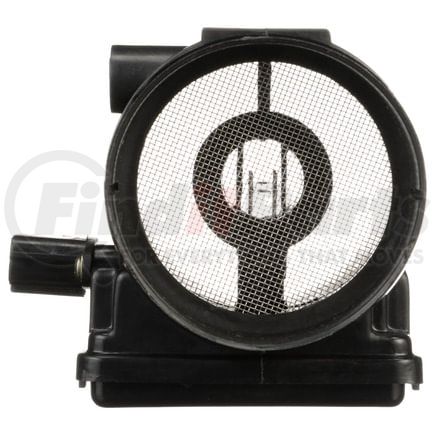

(888) 312-8812 Login SignupDELPHI AF10470 Mass Air Flow Sensor
$20099
Limited availability at this price!
1 Day Lead Time
Get it by Tuesday, Jun 16
DELPHI AF10470 Part Description
Manufacturer
Product Description
Mass Air Flow Sensor
Features & Benefits
- Delphi mass air flow sensors are the global benchmark for accuracy and signal noise
- Delphi mass air flow sensors feature high quality sensing elements for outstanding performance over a wide range of ambient temperatures
- Delphi is a manufacturer of OE mass air flow sensors since their first use over 30 years ago
- All parts are calibrated and tested to match the OE part
- Probe solution offered wherever possible to reduce repair time by eliminating the need to replace the flow tube
- Delphi OE technology validated to match the vehicle applications
DELPHI AF10470 Specifications
Product Attributes
| Package Contents | Mass Air Flow Sensor - Complete Assembly |
| Item Grade | Standard Replacement |
| Color | Black |
| Housing Included | Yes |
| Inlet Connection Diameter | 2.768 IN |
| Inlet Connection Diameter | 70.3 MM |
| Outlet Connection Diameter | 70.3 MM |
| Outlet Connection Diameter | 2.8 IN |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard Replacement |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Mounting Hole Quantity | 2 |
| Housing Material | Plastic |
| Terminal Quantity | 3 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 112 MM |
| Sensor Casing Width | 97 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | No |
| Bolt Hole Center To Bolt Hole Center | 30.00 MM |
| Mounting Hole Diameter | 0.2 IN |
| Seal Quantity | 0 |
| Sensor Casing Length | 4.4 IN |
| Sensor Casing Width | 3.8 IN |
| Bolt Hole Center To Bolt Hole Center | 1.10 IN |
| Mounting Hole Diameter | 6 MM |
| Intake Air Temperature (IAT) Included | No |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 9026802000 |
| UPC | 00689604300350 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10470 Cross References
DELPHI AF10470 Fits Vehicles
- Geo Tracker (1994-1997)
- Chevrolet Tracker (1998)
- Suzuki X-90 (1996-1998)
- Suzuki Sidekick (1992-1998)
