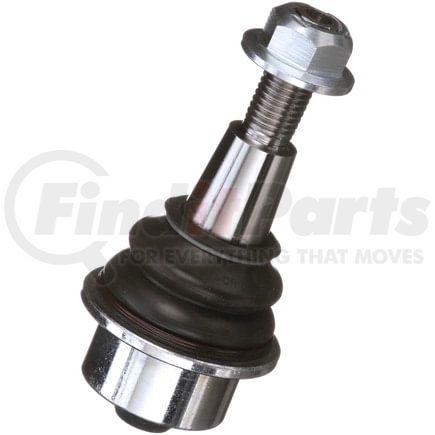

Delphi TC5664 - Ball Joint
$4749
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.402 IN |
| Maximum Outside Diameter | 61.00 MM |
| Color | Silver |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 61 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 5.276 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.26 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| Stud Tapered End 2 Diameter | 0.843 IN |
| Stud Tapered End 2 Diameter | 21.4 MM |
| Stud Tapered End 1 Diameter | 1.106 IN |
| Stud Tapered End 1 Diameter | 28.1 MM |
| Stud Thread Pitch | 2 MM |
| Length | 134.00 MM |
| Length | 5.280 IN |
| Stud Thread Diameter | 0.63 IN |
| Height | 134.01 MM |
| Stud Thread Length | 32 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604311424 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- GMC Yukon XL (2015-2016)
- Cadillac Escalade (2015-2016)
- Chevrolet Tahoe (2015-2016)
- Cadillac Escalade ESV (2015-2016)
- Chevrolet Suburban (2015-2016)
- GMC Yukon (2015-2016)
- Chevrolet Silverado 1500 (2014-2016)
- GMC Sierra 1500 (2014-2016)
