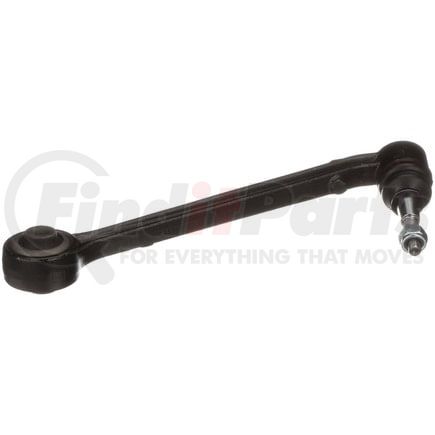

(888) 312-8812 Login SignupDELPHI TC5653 Control Arm and Ball Joint Assembly
Tap to view 3 more
$5049
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
DELPHI TC5653 Part Description
DELPHI TC5653 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower Rearward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 2.362 IN |
| Control Arm Maximum Width | 60.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 102.00 MM |
| Control Arm Maximum Length | 13.339 IN |
| Control Arm Maximum Length | 338.80 MM |
| Mounting Hole Diameter | 14.30 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 4.016 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.563 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604301937 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC5653 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | RK621480 |
| General Motors | 20951301, 92195442 |
| MAS Industries | CB91284, CB91284PR |
| Dorman | 52-2064 |
| TRW | JTC2007 |
| N/A | GS501130, CMS501130, CK621480 |
DELPHI TC5653 Fits Vehicles
- Chevrolet Camaro (2010-2015)
