Item Grade	Standard Replacement
Position(s)	Rear Upper
Material	Steel
Color	Gray
Stud Thread Diameter	14 MM
Castle Nut Included	No
Grease Fitting Included	No
Suspension Grade Type	Standard
Bushings Included	No
Dust Boot Included	Yes
Ball Joint Assembly	Yes
Width	142 MM
Cotter Pin Included	No
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Mounting Bolt Length	1.378 IN
Mounting Bolt Length	35.00 MM
Washers Included	Yes
Height	4.409 IN
Nuts Included	Yes
Mounting Hole Quantity	3
Adjustable	No
Greaseable	No
Stud Thread Length	1.22 IN
Wrench Size	21mm
Stud Type	Threaded
Mounting Type	Bolt-In
Dust Boot Material	Rubber
Mounting Bolt Shank Diameter	14.00 MM
Mounting Bolt Head Diameter	1.173 IN
Mounting Bolt Head Diameter	29.80 MM
Mounting Bolts Included	Yes
Mounting Bolt Thread Pitch	2 MM
Mounting Bolt Thread Length	28.00 MM
Mount Plate Included	Yes
Tapered Stud	Yes
Stud Taper Per Foot	0.167 IN
Stud Tapered End 2 Diameter	0.524 IN
Stud Tapered End 2 Diameter	13.3 MM
Stud Tapered End 1 Diameter	0.717 IN
Stud Tapered End 1 Diameter	18.2 MM
Stud Thread Pitch	2 MM
Length	118.00 MM
Length	4.650 IN
Stud Thread Diameter	0.55 IN
Height	111.99 MM
Stud Thread Length	30.99 MM
Mounting Bolt Shank Diameter	0.550 IN
Mounting Bolt Thread Length	1.100 IN

Harmonized Tariff Code (Schedule B)	8708807000
Harmonized Tariff Code (HTS)	8708806590
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Country of Origin (Primary)	TR
UPC	00689604302057
VMRS Code	016001014
UNSPSC	25174203

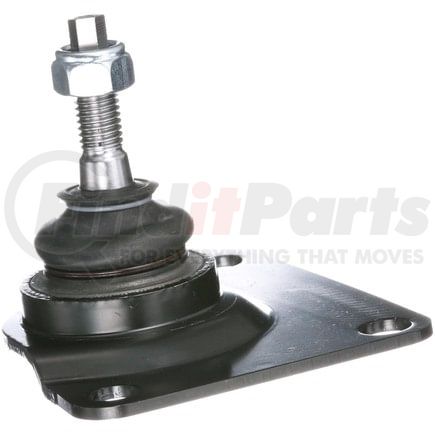

Delphi TC5374 - Ball Joint

Ball Joint
