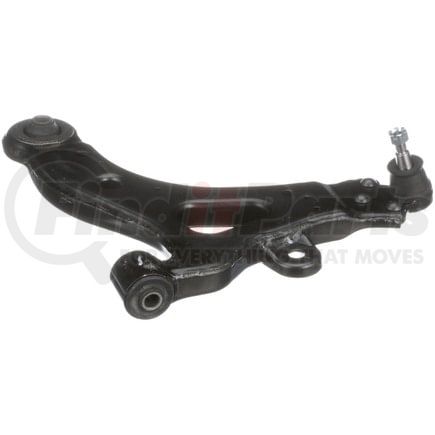

DELPHI TC5214 - Control Arm and Ball Joint Assembly
$8199
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including Carbon black, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 15.94 IN |
| Control Arm Maximum Width | 405.0 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.47 IN |
| Ball Joint Thread Diameter | 12.0 MM |
| Ball Joint Stud Length | 2.91 IN |
| Ball Joint Stud Length | 74.0 MM |
| Control Arm Maximum Length | 15.94 IN |
| Control Arm Maximum Length | 405.0 MM |
| Bushing Material | Rubber |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604296257 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
Fits Vehicles
- Pontiac Aztek (2001-2005)
- Buick Rendezvous (2002-2007)
