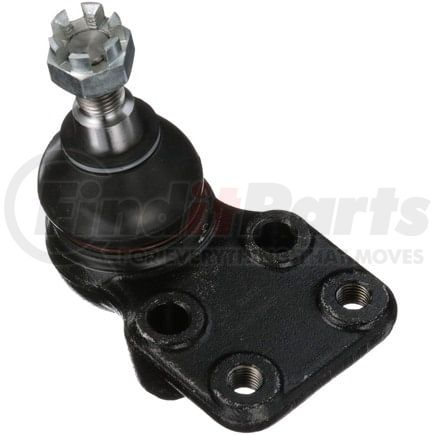

DELPHI TC5125 Ball Joint

★★★★★ (0)
Delphi TC5125 Suspension Ball Joint Ball Joint
DELPHI
Tap to view 2 more

$52.49

Limited availability at this price!

5 Day Lead Time

Get as soon as Friday, Dec 4
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

DELPHI TC5125 Part Description

Manufacturer

DELPHI

Product Description

Ball Joint

Features & Benefits

  • Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
  • Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
  • Delphi machines to micron tolerances to guarantee durability and smooth joint operation
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TC5125 Specifications

Product Attributes

Item GradeStandard Replacement
Position(s)Front Lower
MaterialSteel
ColorBlack
Stud Thread Diameter0.55 IN
Stud Thread Diameter14 MM
Castle Nut IncludedNo
Grease Fitting IncludedNo
Suspension Grade TypeStandard Replacement
Bushings IncludedNo
Dust Boot IncludedYes
Ball Joint AssemblyYes
Width49.00 MM
TypeThreaded
Cotter Pin IncludedNo
Cotter Pin HoleNo
Mounting Hardware IncludedYes
Washers IncludedYes
Height3.76 IN
Height95.70 MM
Nuts IncludedNo
Mounting Hole Quantity4
AdjustableNo
GreaseableNo
Stud Thread Length0.88 IN
Stud Thread Length22.50 MM
Mounting TypeBolt-In
Distance Between Mounting Holes30.00 MM
Dust Boot MaterialRubber
Tapered StudYes
Stud Thread Pitch1.5 MM
Length100.60 MM
Length3.96 IN
Maximum Outside Diameter49.00 MM
Thread DirectionClockwise (Right)
Pre-GreasedYes
Outside Diameter49.00 MM
Bearing TypePlastic
Boot ColorBlack
Mounting Hole Diameter10.50 MM
Stud TypeThreaded
Mount Plate IncludedNo
Stud Tapered End 2 Diameter20.50 MM
Retaining Ring IncludedYes
Maximum Outside Diameter1.92 IN
Width1.92 IN
Outside Diameter1.92 IN
Mounting Hole Diameter0.41 IN
Distance Between Mounting Holes1.18 IN
Stud Tapered End 2 Diameter0.80 IN

Additional Information

Harmonized Tariff Code (Schedule B)8708807000
Country of Origin (Primary)CN
Harmonized Tariff Code (HTS)8708806590
Warranty SpecialLimited
Warranty Special UOMLT
UPC00689604297315
VMRS Code016001015
UNSPSC25174203

DELPHI TC5125 Cross References

BrandPart Number
Beck/Arnley101-3503
DORMANB9551, B9551PR
General Motors94224552, 94246475
Isuzu8-94246-475-0, 8-94246-475-1, 8-94246-475-2, 8-94452-104-0
MEVOTECHMK9551
MOOGK9551
MOOG Chassis ProductsK9551
N/AGK9551, B9551, MK9551, B9551PR
TRWJBJ412

DELPHI TC5125 Fits Vehicles

  • Chevrolet LUV (1981-1982)
  • Isuzu Pickup (1981-1987)
