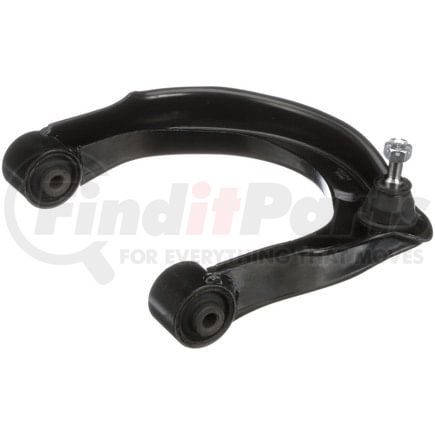

(888) 312-8812 Login SignupDELPHI TC3486 Control Arm and Ball Joint Assembly
Tap to view 17 more
$5849
Limited availability at this price!
In Stock
Get it by Tuesday, Jun 23
DELPHI TC3486 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC3486 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 8.937 IN |
| Control Arm Maximum Width | 227.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 10.00 MM |
| Ball Joint Stud Length | 2.992 IN |
| Ball Joint Stud Length | 76.00 MM |
| Control Arm Maximum Length | 9.921 IN |
| Control Arm Maximum Length | 252.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 10.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.394 IN |
| Thread Diameter | 0.394 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604298831 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC3486 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | CB60037, CB60037PR |
| Dorman | 521-061 |
| Hyundai | 54410-3F601 |
| Kia | 54410-3F601 |
| MAS Industries | CB60037, CB60037PR |
| MEVOTECH | CMS90158, CMS901026 |
| MOOG | RK621230 |
| MOOG Chassis Products | RK621230 |
| N/A | 54410-3K000, 54420-3K000, 544103F600, 102-5356, CMS90158, GS90158, CMS901026, 101-5356, CK621230, 522-241, 623.51016 |
| TRW | JTC7769 |
| UNITY AUTOMOTIVE | CAB621230, 2C-CAB621230, SC-700027 |
DELPHI TC3486 Fits Vehicles
- Kia Amanti (2007-2009)
- Hyundai Azera (2006-2011)
- Hyundai Sonata (2006-2010)
