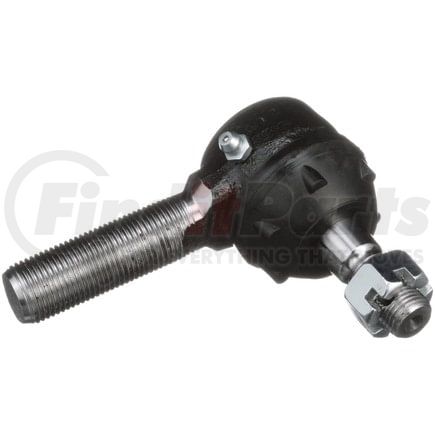

Delphi TA5455 - Tie Rod End
$2349
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Left, Left Outer. For the position specific to your vehicle, refer to the Applications. |
| Item Grade | Standard Replacement |
| Length | 112.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 48.4 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.750 IN |
| End 2 Thread Diameter | 19.05 MM |
| Height | 81.80 MM |
| Housing Material | Steel |
| 36 | 0.750 IN |
| Tube Diameter | 19.05 MM |
| Adjustable | No |
| Greasable | Yes |
| Weight | 1.32 lb |
| Cone Outside Diameter | 17.90 MM |
| Bearing Material | Plastic |
| End 2 Thread Direction | Counterclockwise (Left) |
| Stud Type | Threaded |
| Length Stud Center to End | 3.543 IN |
| Length Stud Center to End | 90.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 16 |
| End 1 Threads Per Inch | 18 |
| End 1 Thread Diameter | 0.563 IN |
| End 1 Thread Diameter | 14.29 MM |
| Shank Length | 17.90 MM |
| Stud Length | 17.90 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.705 IN |
| Stud Length | 0.705 IN |
| 662 | 0.705 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604302262 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- International 1200A (1966)
- International C120 (1961-1962)
- International C1200 (1963-1964)
- International C122 (1961-1962)
- International A122 (1957-1958)
- International A120 (1957-1958)
- International 1200C (1968)
- Ford F-350 (1953-1966)
- Ford F-250 (1961-1966)
- Ford F-100 (1961-1965)
- GMC 2500 (1966)
- GMC 1500 (1966)
- GMC 1000 (1966)
- GMC K1000 (1966)
- GMC I1500 (1965-1966)
- Ford F4 (1948-1952)
- GMC K1000 Pickup (1966)
- GMC Suburban (1963-1966)
- GMC K15/K1500 Pickup (1966)
- GMC 2500 Series (1963-1965)
- GMC 1500 Series (1963-1965)
- GMC 1000 Series (1963-1965)
- Chevrolet Suburban (1964-1966)
- Chevrolet K20 Pickup (1961-1966)
- Chevrolet K10 Pickup (1964-1966)
- Ford P-350 (1953-1976)
- Ford P-400 (1975-1976)
- Ford P-500 (1975-1977)
