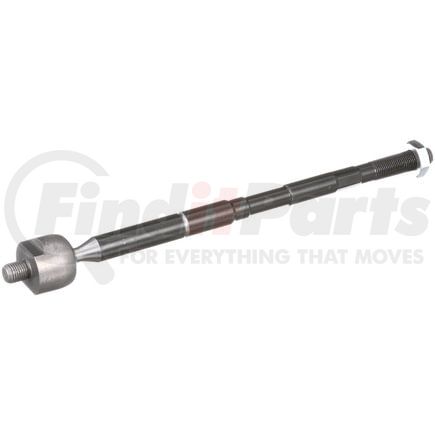

(888) 312-8812 Login SignupDELPHI TA5428 Tie Rod End
Tap to view 8 more
$2799
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
DELPHI TA5428 Part Description
DELPHI TA5428 Specifications
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Length | 334.90 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | No |
| Width | 37 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 15.00 MM |
| Height | 37.00 MM |
| Housing Material | Steel |
| Tube Diameter | 0.709 IN |
| Tube Diameter | 18.00 MM |
| Adjustable | Yes |
| Greaseable | No |
| Weight | 1.49 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 11.772 IN |
| Length - Stud Center to End | 299.00 MM |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 14.00 MM |
| Grade Type | Standard |
| Grade | Premium |
| End 2 Thread Diameter | 0.591 IN |
| End 1 Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604302088 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
DELPHI TA5428 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-5724 |
| MOOG Chassis Products | EV800096 |
| Toyota | 45503-29825 |
| MAS Industries | 535-194 |
| TRW | JAR7605 |
| N/A | MS86711, TI71010, 535-194, GS86711, TI71010XL |
DELPHI TA5428 Fits Vehicles
- Scion tC (2005-2010)
