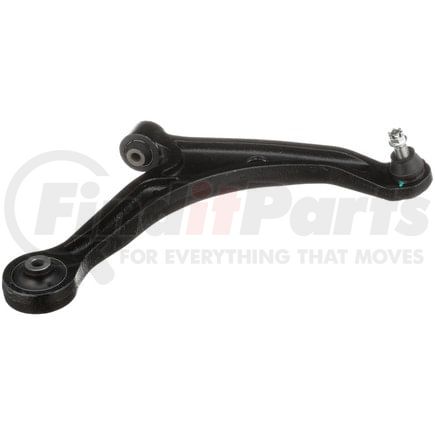

(888) 312-8812 Login SignupDELPHI TC5577 Control Arm and Ball Joint Assembly
Tap to view 13 more
$9249
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 30
DELPHI TC5577 Part Description
DELPHI TC5577 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 17.126 IN |
| Control Arm Maximum Width | 435.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 2.874 IN |
| Ball Joint Stud Length | 73.00 MM |
| Control Arm Maximum Length | 17.717 IN |
| Control Arm Maximum Length | 450.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604301425 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC5577 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 102-6447 |
| MOOG Chassis Products | K80281 |
| Mevotech | MK80281 |
| Honda | 51350-S3V-A03 |
| MAS Industries | CB59044, CB59044PR |
| TRW | JBJ971, JTC2661 |
| Dorman | 52-1714 |
| N/A | 51350-S3V-A01, 51350-S3V-A10, RK621350, GS60106, CMS60106 |
DELPHI TC5577 Fits Vehicles
- Honda Pilot (2003-2008)
- Acura MDX (2001-2006)
