DELPHI TC5091 Part Description
Manufacturer
Product Description

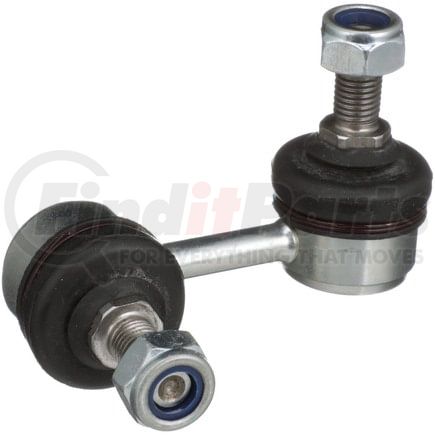

Suspension Stabilizer Bar Link
Features & Benefits
- Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
- Delphi sway bar links are fatigue tested to avoid failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5091 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left, Rear. For the position specific to your vehicle, refer to the Applications. |
| Material | Steel |
| Length | 3.780 IN |
| Length | 96.00 MM |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Bolt Thread Size | 1.25 |
| Width | 2.48 IN |
| Width | 63 MM |
| Washers Included | No |
| Height | 2.480 IN |
| Height | 63.00 MM |
| Grade Type | Standard Replacement |
| Bolts Included | No |
| Housing Material | Steel |
| Greaseable | No |
| Bolt Head Diameter | 0.750 IN |
| Bolt Head Diameter | 19.00 MM |
| Weight | 0.22 lb |
| Wrench Size | 14mm |
| Bolt Length | 20.50 MM |
| Bolt Length | 0.810 IN |
| Bolt Thread Diameter | 0.390 IN |
| Bolt Thread Diameter | 10.00 MM |
| Locking Nuts Included | Yes |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604301999 |
| VMRS Code | 016004006 |
| UNSPSC | 25172001 |
DELPHI TC5091 Cross References
DELPHI TC5091 Fits Vehicles
- Mitsubishi Lancer (2003-2006, 2008-2015)
- Mitsubishi Outlander (2003-2006)
