CENTRIC 320.44059 Part Description
Manufacturer
Product Description

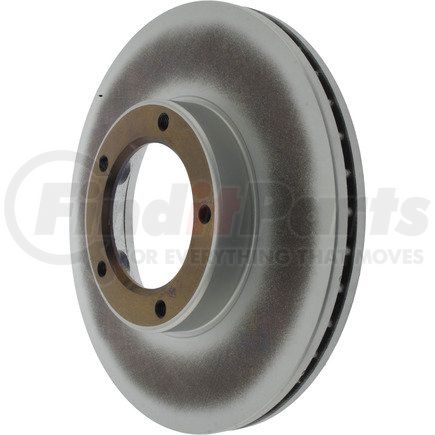

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.44059 Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 5.000 |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 11.000 |
| Disc Mounting [cntrc] | Behind the Hub |
| Misc Holes [cntrc] | 0 |
| Discard Thickness | 0.787 IN |
| Discard Thickness | 20.000 MM |
| Nominal Thickness | 22.000 MM |
| Nominal Thickness | 0.866 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 46.000 MM |
| Overall Height | 1.811 IN |
| Outside Diameter | 253.400 MM |
| Outside Diameter | 9.976 IN |
| Mounting Bolt Hole Quantity | 5 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.250 MM |
| Bearings Included | No |
| Center Hole Diameter | 3.307 IN |
| Center Hole Diameter | 84.000 MM |
| Mounting Bolt Hole Circle Diameter | 110.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.331 IN |
| Mounting Bolt Hole Diameter | 10.000 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590389425 |
CENTRIC 320.44059 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 96183R |
