CENTRIC 320.45062 - GCX Rotor with Partial Coating
$3899
MSRP: $54.61
Save: $15.62
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
CENTRIC part description
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description

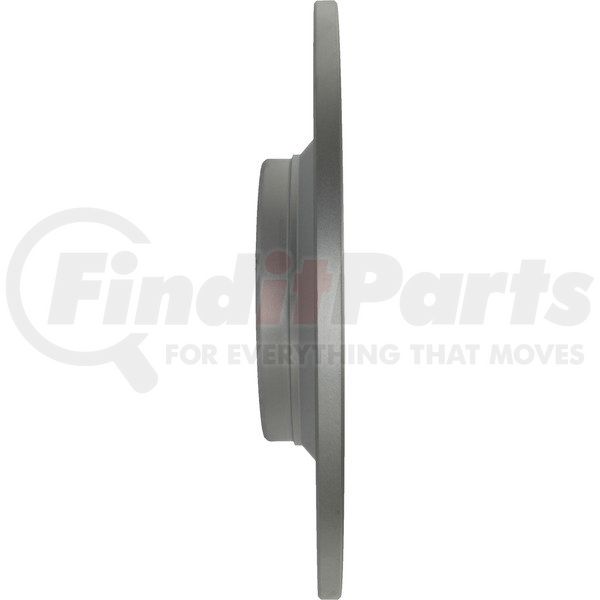

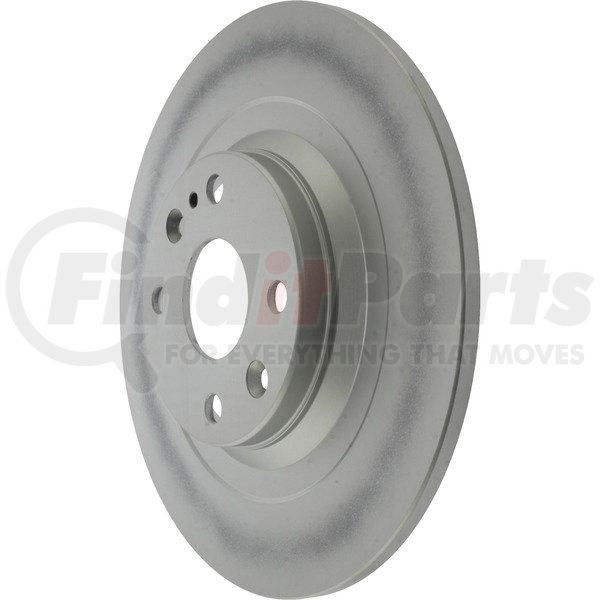

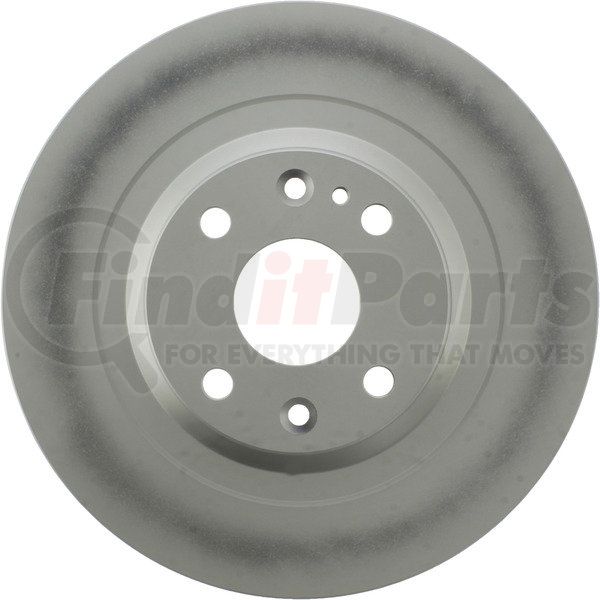

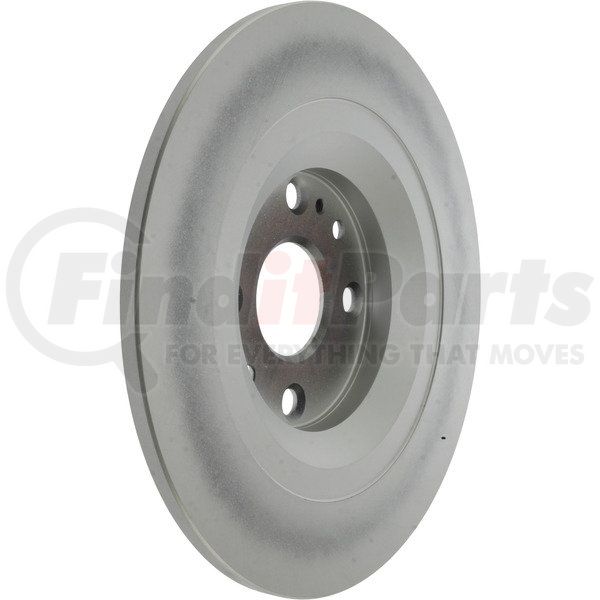

GCX Rotor with Partial Coating
Application Summary
2001 - 2005 Mazda Miata
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Centric; Centric Parts; GxC Brake; GxC Rotor; Brake Rotor
Product Attributes
Discard Thickness | 0.315 IN |
Discard Thickness | 8.00 MM |
Nominal Thickness | 0.394 IN |
Nominal Thickness | 10.00 MM |
Disc Finish | Partially Coated |
Hat Finish | Coated |
Outside Diameter | 10.846 IN |
Outside Diameter | 275.50 MM |
ABS Tone Ring Included | No |
Surface Type | Smooth |
Solid Or Vented Type Rotor | Solid |
Center Hole Diameter | 2.169 IN |
Center Hole Diameter | 55.10 MM |
Mounting Bolt Hole Circle Diameter | 3.937 IN |
Mounting Bolt Hole Circle Diameter | 100.00 MM |
Stud/Lug Hole Quantity | 4 |
Stud/Lug Hole Diameter | 0.512 IN |
Stud/Lug Hole Diameter | 13.00 MM |
Disc Mounting [cntrc] | Floating |
Height | 34.40 |
Hub Hole/Whl Reg [cntrc] | 55.1 MM |
Misc Holes [cntrc] | 3 |
Weight [cntrc] | 4.090 KG |
Weight [cntrc] | 9.000 LB |
Disc Mounting | Floating |
Hub Hole Diameter | 55.1 MM |
Misc Holes | 3 |
Weight | 4.090 KG |
Weight | 9.000 LB |
Additional Information
Country of Origin (Primary) | CN |
Harmonized Tariff Code (HTS) | 8708305030 |
NAFTA Preference Criterion Code | B |
UPC | 00889590390018 |
Part Interchanges
CENTRIC 320.45062 Cross Reference
We have 2 alternatives for the 320.45062 by CENTRIC:
Don't know your part number?
Take a photo and we'll identify it!
