CENTRIC 320.45035 Part Description
Manufacturer
Product Description

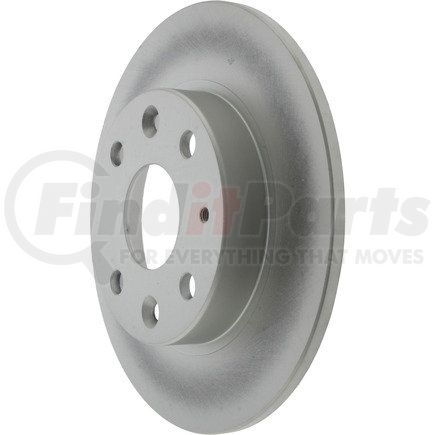

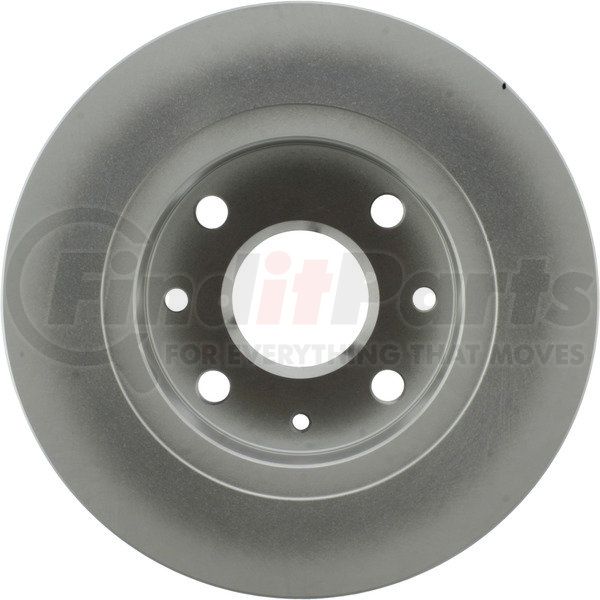

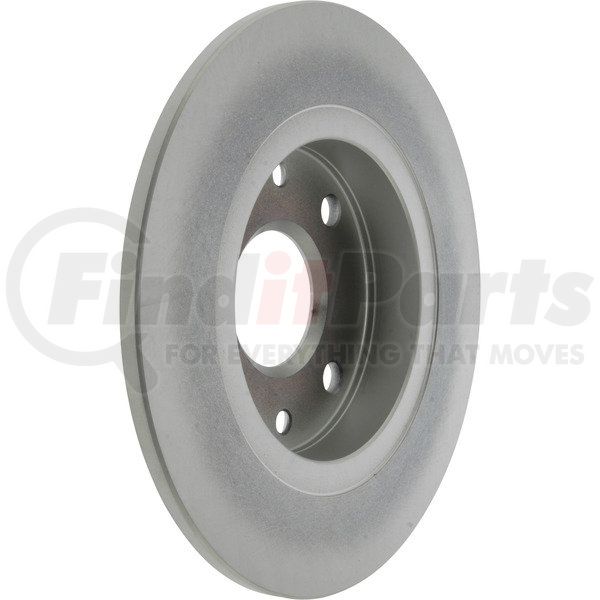

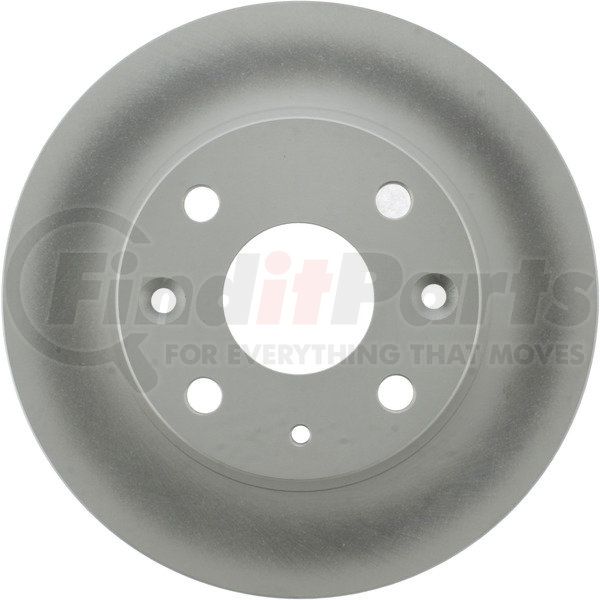

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.45035 Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Lbs | 7.000 |
| Weight [cntrc] Kgs | 3.180 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Discard Thickness | 8.000 MM |
| Discard Thickness | 0.315 IN |
| Nominal Thickness | 9.000 MM |
| Nominal Thickness | 0.354 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 34.500 MM |
| Overall Height | 1.358 IN |
| Outside Diameter | 231.000 MM |
| Outside Diameter | 9.094 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Bearings Included | No |
| Center Hole Diameter | 55.000 MM |
| Center Hole Diameter | 2.165 IN |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Stud/Lug Hole Quantity | 4 |
| Stud/Lug Hole Diameter | 13.000 MM |
| Stud/Lug Hole Diameter | 0.512 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590389913 |
CENTRIC 320.45035 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 96214R |
