DELPHI AF10620 Part Description
Manufacturer
Product Description

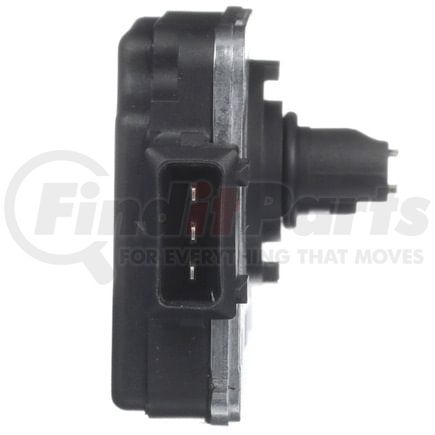

Mass Air Flow Sensor
Features & Benefits
- Delphi mass air flow sensors are the global benchmark for accuracy and signal noise
- Delphi mass air flow sensors feature high quality sensing elements for outstanding performance over a wide range of ambient temperatures
- Delphi is a manufacturer of OE mass air flow sensors since their first use over 30 years ago
- All parts are calibrated and tested to match the OE part
- Probe solution offered wherever possible to reduce repair time by eliminating the need to replace the flow tube
- Delphi OE technology validated to match the vehicle applications
DELPHI AF10620 Specifications
Product Attributes
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Item Grade | Standard Replacement |
| Color | Black |
| Housing Included | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard Replacement |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 3 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 87 MM |
| Sensor Casing Width | 53 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 68.70 MM |
| Mounting Hole Diameter | 0.1 IN |
| Seal Outside Diameter | 15.6 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 3.4 IN |
| Sensor Casing Width | 2.0 IN |
| Bolt Hole Center To Bolt Hole Center | 2.70 IN |
| Mounting Hole Diameter | 4.5 MM |
| Seal Outside Diameter | 0.6 IN |
| Intake Air Temperature (IAT) Included | No |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604297278 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10620 Cross References
| Brand | Part Number |
|---|---|
| BWD | 29018 |
| Beck/Arnley | 157-0243 |
| Bosch | 63113, F00E170373 |
| CARDONE New | 86-9516 |
| CARDONE Reman | 74-9516 |
| Carquest | MQ7303 |
| Datsun/Nissan | 22680-0B000 |
| Ford | F3XY 12B579-A |
| GLOBAL PARTS DISTRIBUTORS | 1813210 |
| Hitachi Automotive | AFH50-15M, MAF0002, MAF0003 |
| Motorcraft | AFLS-146 |
| N/A | 245-1021, MF20097, MF0895N, MF20097N |
| NAPA Reman Computers | MAF69516, XTP49516 |
| NGK SPARK PLUGS | MG0127 |
| NTK | MG0127 |
| Richporter | MA225 |
| SPECTRA PREMIUM | MA349S |
| Spectra Premium | MA352 |
| Standard Motor Products | MF0895 |
| Wells | SU2228, SU5062 |
DELPHI AF10620 Fits Vehicles
- Nissan Quest (1993-1995)
- Mercury Villager (1993-1995)
