DELPHI AF10529 Part Description
Manufacturer
Product Description

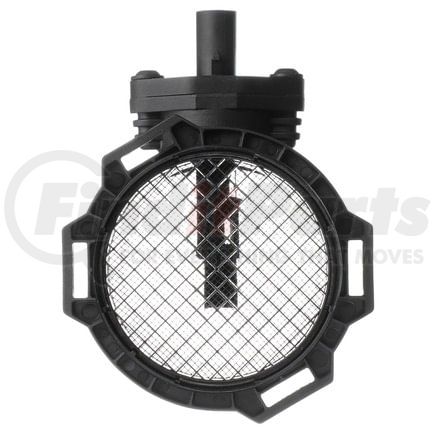

Mass Air Flow Sensor
Features & Benefits
- Delphi mass air flow sensors are the global benchmark for accuracy and signal noise
- Delphi mass air flow sensors feature high quality sensing elements for outstanding performance over a wide range of ambient temperatures
- Delphi is a manufacturer of OE mass air flow sensors since their first use over 30 years ago
- All parts are calibrated and tested to match the OE part
- Probe solution offered wherever possible to reduce repair time by eliminating the need to replace the flow tube
- Delphi OE technology validated to match the vehicle applications
DELPHI AF10529 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Package Contents | Mass Air Flow Sensor - Complete Assembly |
| Color | Black |
| Housing Included | Yes |
| Inlet Connection Diameter | 2.752 IN |
| Inlet Connection Diameter | 69.9 MM |
| Outlet Connection Diameter | 2.7 IN |
| Outlet Connection Diameter | 69.5 MM |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard Replacement |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Mounting Hole Quantity | 2 |
| Housing Material | Plastic |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 96 MM |
| Sensor Casing Width | 87 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 102.00 MM |
| Mounting Hole Diameter | 0.2 IN |
| Seal Outside Diameter | 81.3 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 3.7 IN |
| Sensor Casing Width | 3.4 IN |
| Bolt Hole Center To Bolt Hole Center | 4.00 IN |
| Mounting Hole Diameter | 7 MM |
| Seal Outside Diameter | 3.2 IN |
| Intake Air Temperature (IAT) Included | No |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 9026802000 |
| UPC | 00689604294758 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10529 Cross References
| Brand | Part Number |
|---|---|
| BMW | 13 62 7 582 553 |
| BWD | MA1191 |
| Bosch | 0280218228, 0280218229 |
| N/A | MF21341 |
| NAPA Reman Computers | XTP410211 |
| STANDARD IGNITION | MAS0359 |
| Spectra Premium | MA285 |
| Standard Motor Products | MAS0359 |
DELPHI AF10529 Fits Vehicles
- Mini Cooper (2009-2012)
