MOOG 220 - Greaseable Super Strength U-Joint
- Part Number
- 220
- Manufacturer
- MOOG
- Description
-
Greaseable Super Strength U-Joint
details
$4499
In stock
limited availability at this price!
MOOG part description
Product Description

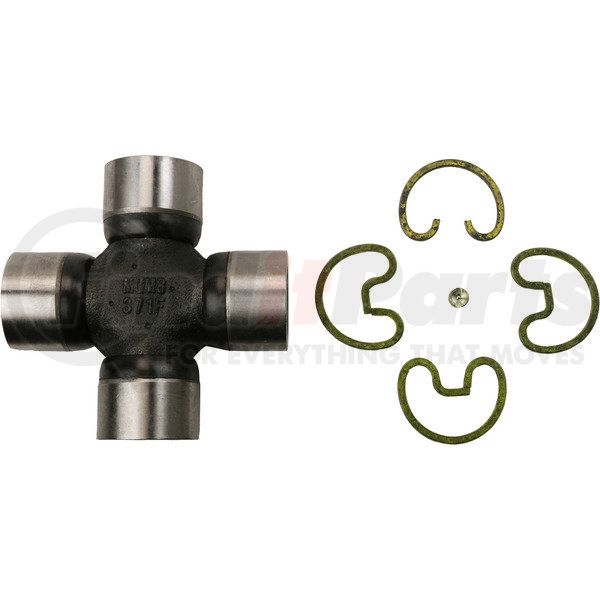

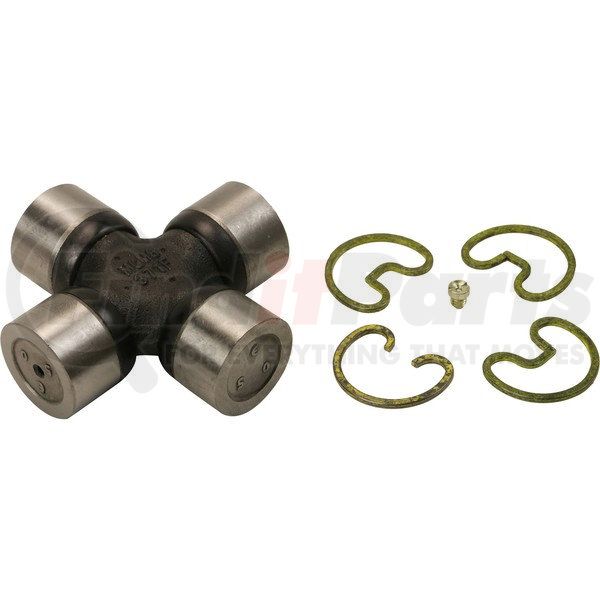

Greaseable Super Strength Universal Joint
Features & Benefits
- BUILT TO LAST -- Rugged design specifically engineered for applications with higher torque and horsepower
- CONSTRUIDAS PARA DURAR -- Diseño resistente específicamente para aplicaciones con mayor torque y potencia
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- AMPLIA COBERTURA -- Disponible para placas nacionales y extranjeras
- CORROSION PROTECTION -- Exclusive MICRO SHIELDâ„¢ coating protects against rust and corrosion
- PROTECCIÓN CONTRA CORROSIÓN -- El exclusivo recubrimiento MICRO SHIELD protege contra oxido y corrosión
- GREASABLE DESIGN -- Bearing cups feature a radial design to allow 360 Degrees lubricant distribution to all bearing surfaces
- DISEÑO ENGRASABLE -- Las copas cuentan con un diseño radial que permite la lubricación a 360 grados para alcanzar todas las superficies del rodamiento
- KEEPS DIRT OUT -- Abrasion-resistant nitrile seals provide ideal grease retention and protection from under-vehicle contaminants
- MANTIENE LOS CONTAMINANTES FUERA -- Los sellos de nitrilo resistentes a la abrasión, usan un doble labio comprimido diseñado para una efectiva protección contra los contaminantes
- RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
- PRUEBAS RIGUROSAS -- Pruebas exhaustivas a lo largo de los procesos de diseño y desarrollo por parte de los ingenieros de MOOG para obtener una calidad en la que se puede confiar
- STRONG AND DURABLE -- Bearing cups are cold-forged, case-hardened and precision ground while steel cross is forged and carburized heat treated for strength and durability
- FUERTE Y DURADERO -- Las copas son forjadas en frio, endurecidas y rectificadas , mientras que el cuerpo está forjado y tratado con carbón para incrementar la dureza y durabilidad
Product Attributes
| Bearing Cap Axis 1 Diameter | 1.189 IN |
| Bearing Cap Axis 1 Diameter | 30.188 MM |
| Bearing Cap Axis 2 Diameter | 1.189 IN |
| Bearing Cap Axis 2 Diameter | 30.188 MM |
| Bearing Cap Type | 4 Plain Round Bearings |
| Length Axis 1 | 3.22 IN |
| Length Axis 1 | 81.788 MM |
| Length Axis 2 | 3.22 IN |
| Length Axis 2 | 81.788 MM |
| Greasable | YES |
| Part Description | Universal Joint |
Additional Information
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8708991510 |
| Harmonized Tariff Code (Schedule B) | 8708996810 |
| Harmonized Tariff Code (HTS) | 8708996810 |
| UPC | 00080066705118 |
Part Interchanges
Fits Vehicles
- Ford F-150 (2015-2018)
- Ford Mustang (2015-2019)
