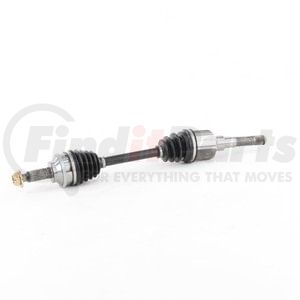

(888) 312-8812 Login SignupTRAKMOTIVE VW8001 CV Axle Shaft
Tap to view 1 more
$10349
Limited availability at this price!
In Stock
Get it by Friday, Dec 26
TRAKMOTIVE VW8001 Part Description
TRAKMOTIVE VW8001 Specifications
Product Attributes
| ABS Ring Tooth Count | 0 |
| ABS Ring Type | N/A |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | N/A |
| Axle Bolt Length (mm) | N/A |
| Axle Bolt Thread Size | N/A |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .56 |
| Axle Nut Height (mm) | 14 |
| Axle Nut Hex Size (in) | 1.67 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.33 |
| Axle Nut Length (mm) | 35 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M20x1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | .25 |
| Inboard Bolt Head Size (mm) | 6 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2.29 |
| Inboard Bolt Length (mm) | 58 |
| Inboard Bolt Thread Size | M8x1.25 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 36 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 21.81 |
| Overall Compressed Length (mm) | 554 |
| Axle Nut Socket Size | 30 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Outboard Joint Boot Material | Neoprene |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00844084097019 |
TRAKMOTIVE VW8001 Part Interchanges
| Brand | Part Number |
|---|---|
| ARC | 80-3168 |
| EMPI | 80-6823 |
| Car Components Technologies (CCT) | 7523 |
| Mevotech | CV7071 |
| Carquest | 410439, 800440 |
| USA Industries | AX-3224 |
| American Remanufactured | 40-18861 |
| Diversified Shafts Solutions | 2244N |
| Drive Tech America | VW-8861 |
| Fenwick | CV3029 |
| CARDONE Reman | 60-7252, 66-7252 |
| IMC | 40754057 |
| Carquest Premium AC | NCV72011 |
| OEM Part Number | 1H0407271C, 1H0407271CX, 1HM407271A, 1J0407271NR, 1J0407271PQ |
| Altrom Group | 652723 |
| ODM | VW-8-8517 |
| TrakMotive | VW-8001 |
| ProTech | VW10506, VW10514 |
| N/A | 410439, NCV72011, 75977, MX-18861, 349001 |
TRAKMOTIVE VW8001 Fits Vehicles
- Volkswagen Beetle Cabrio (2010)
- Volkswagen Jetta City (2007-2009)
- Volkswagen Golf City (2007-2010)
- Audi A3 (2000-2003)
- Volkswagen Beetle (2001, 2003-2010)
- Volkswagen Jetta (1995-2008)
- Volkswagen Golf (1995-2000, 2002-2006)
- Volkswagen Passat (1993-1997)
- Volkswagen Corrado (1992-1995)
TRAKMOTIVE VW8001 Cross References
We have 1 alternatives for the VW8001 by TRAKMOTIVE:
