RAYBESTOS 980941FZN Part Description
Manufacturer
Product Description

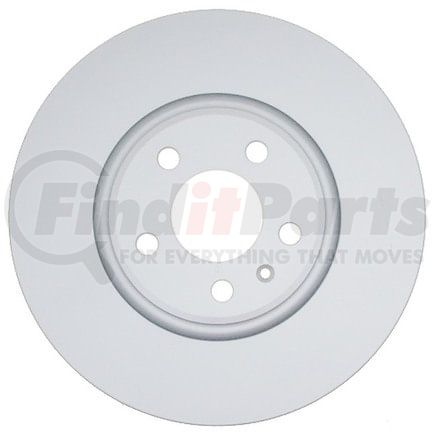

Raybestos Element3 Coated Brake Rotor
Application Summary
2016-2012 Audi A4 Front, 2012-2011 Audi Q5 Front, 2016-2012 Audi A4 Quattro Front, 2017-2012 Audi A5 Quattro Front, 2016-2013 Audi allroad Front, 2013-2012 Audi A7 Quattro Front, 2016-2012 Audi A5 Front, 2013 Audi A6 Quattro Front
Features & Benefits
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- RPT® Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 980941FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.102 IN |
| Discard Thickness | 28 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.441 IN |
| Inside Diameter | 189 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.595 IN |
| Mounting Bolt Hole Diameter | 15.1 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.177 IN |
| Nominal Thickness | 29.9 MM |
| Outside Diameter | 12.594 IN |
| Outside Diameter | 319.9 MM |
| Overall Height | 2.055 IN |
| Overall Height | 52.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213288339 |
RAYBESTOS 980941FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | N1000407719ZIC |
| AUDI | 8R0615301, 8R0615301D |
| AUTOXTRA | AX901126 |
| AUTOZONE | 78016DG, 78016DL |
| BENDIX | BPR6239 |
| BOSCH | 14011524 |
| BRAKEBEST | 14011524, 980941, 980941RGS |
| Brembo | 09.B972.11, 09.B972.1S, 09.B972.1X |
| CENTRIC | 120.33136, 121.33136, 125.33136, 125.33136CRY, 126.33136CSL, 126.33136CSR, 126.33136SL, 126.33136SR, 127.33136L, 127.33136R, 128.33136CL, 128.33136CR, 128.33136L, 128.33136R, 320.33136 |
| Centric Parts | 120.33136, 121.33136, 125.33136, 125.33136CRY, 126.33136CSL, 126.33136CSR, 126.33136SL, 126.33136SR, 127.33136L, 127.33136R, 128.33136CL, 128.33136CR, 128.33136L, 128.33136R, 320.33136 |
| DURA CORP | BR34499, BR901126 |
| DuraGo | BR901126 |
| Dynamic Friction Company | 604-73065 |
| NAPA BRAKES | SDK6751 |
| NEWTEK AUTOMOTIVE | 34499, R1126 |
| Newtek Automotive USA | 34499, R1126 |
| Omnicraft | QBRR588 |
| PAGID | 355123122 |
| PAGID Racing | 355123122 |
| POWERSTOP | EBR1208EVC |
| PROMAX | 14-34499 |
| Qualis | 45584, 45613 |
| TopNotch | TN980941GEO |
| VOLKSWAGEN | 8R0615301F |
| WAGNER BRAKE | BD180524 |
| WINHERE | 6621343 |
| WORLDPAC | 1407-335135, 1427-712964 |
RAYBESTOS 980941FZN Fits Vehicles
- Audi A4 allroad (2013-2016)
- Audi allroad (2013-2016)
- Audi A6 Quattro (2012-2019)
- Audi A6 (2012-2018)
- Audi A5 Quattro (2011-2017)
- Audi S5 (2012)
- Audi A5 (2008, 2011-2016)
- Audi A4 (2011-2016)
- Audi A4 Quattro (2011-2016)
- Audi A7 Quattro (2012-2016, 2018)
- Audi Q5 (2009-2017)
