RAYBESTOS 8541R Part Description
Manufacturer
Product Description

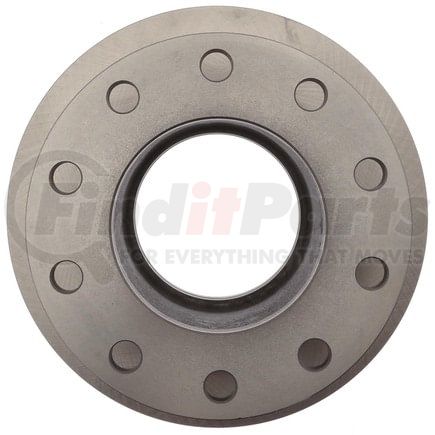

Raybestos R-Line Brake Rotor
Application Summary
2012-2006 Workhorse Custom Chassis W42 Rear, 2011-2006 Workhorse W42 Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 8541R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.65 IN |
| Center Hole Diameter | 118.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1 IN |
| Discard Thickness | 25.4 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.183 IN |
| Inside Diameter | 182.45 MM |
| Mounting Bolt Hole Circle Diameter | 7.25 IN |
| Mounting Bolt Hole Circle Diameter | 184.15 MM |
| Mounting Bolt Hole Diameter | 0.687 IN |
| Mounting Bolt Hole Diameter | 17.45 MM |
| Mounting Bolt Hole Quantity | 10 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 11.8 IN |
| Outside Diameter | 299.7 MM |
| Overall Height | 6.043 IN |
| Overall Height | 153.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 10 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213286458 |
RAYBESTOS 8541R Cross References
RAYBESTOS 8541R Fits Vehicles
- Workhorse Custom Chassis W62 (2008)
- Workhorse Custom Chassis W42 (2006-2012)
- Workhorse W62 (2008)
- Workhorse W42 (2006-2011)
