STOPTECH 227.67028L Part Description
Manufacturer
Product Description

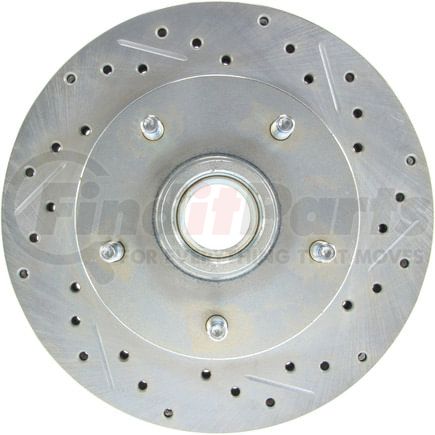

Select Sport Drilled and Slotted Brake Rotor, Front Left
Application Summary
1994 - 1999 Dodge Ram 1500, 1995 - 1998 Dodge Ram 1500 Van, 1999 - 1999 Dodge Ramcharger
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. G11 metallurgy. Drilled & Slotted for increased bite; improved looks and better performance; Zinc coated corrosion protection
StopTech; Stop-Tech; Stop Tech; StopTech Select Sport; Centric; Centric Parts; Centricparts.Com; StopTech Select Sport Brakes; Rotor; Rotors; Brake Rotor; Brake Rotors; Break Rotor; Break Rotors; Brake Disc; Brake Discs; Break Disc; Break Discs; Disc Brake; StopTech Sport Brake Rotors; Zinc Coating; Zinc-Coating; Zinc Coated; StopTech Sport; StopTech Sport Brake Rotor; Drilled and Slotted Rotor; Drilled and Slotted Rotors; Drilled/Slotted Rotor; Drilled/Slotted Rotors; Drilled; Slotted Rotor; Drilled; Slotted Rotors; StopTech Brake Rotors
STOPTECH 227.67028L Specifications
Product Attributes
| Discard Thickness | 1.215 IN |
| Discard Thickness | 30.860 MM |
| Nominal Thickness | 1.283 IN |
| Nominal Thickness | 32.600 MM |
| Stud Thread Diameter | 0.500 IN |
| Stud Thread Diameter | 12.700 MM |
| Outside Diameter | 11.614 IN |
| Outside Diameter | 295.000 MM |
| Height | 4.508 IN |
| Height | 114.500 MM |
| ABS Tone Ring Included | No |
| Surface Type | Slotted X Drilled |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 20.000 IN |
| Center Hole Diameter | 3.059 IN |
| Center Hole Diameter | 77.70 MM |
| Mounting Bolt Hole Circle Diameter | 5.500 IN |
| Mounting Bolt Hole Circle Diameter | 139.70 MM |
| Stud/Lug Hole Quantity | 5 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Inner Bearing # [cntrc] | 410.91005 |
| Inner Seal # [cntrc] | 417.660 |
| Misc Holes [cntrc] | 2 |
| Outer Bearing # [cntrc] | 410.91003 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] | 12.050 KG |
| Weight [cntrc] | 26.500 LB |
| Disc Mounting | Hub & Rotor |
| Inner Bearing | 410.91005 |
| Inner Seal | 417.660 |
| Misc Holes | 2 |
| Outer Bearing | 410.91003 |
| Vane Style | Straight |
| Weight | 12.050 KG |
| Weight | 26.500 LB |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890710608 |
STOPTECH 227.67028L Fits Vehicles
- Dodge Ram 1500 (1994-1999)
