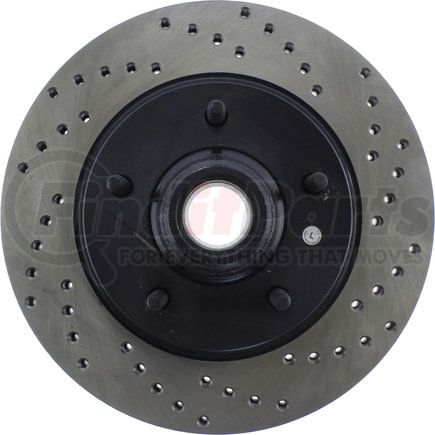

StopTech 128.65055L - Sport Cross Drilled Brake Rotor, Front Left
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
STOPTECH part description
Product Description
Sport Cross Drilled Brake Rotor, Front Left
Application Summary
1997 - 2000 Ford F-150
Features & Benefits
- Premium e-coated rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Drilled for increased bite; improved looks and better performance
Sport Drilled Rotor; StopTech; StopTech Rotor; Stop Tech Rotor; Stop-Tech Sport Rotor; StopTech Sport Rotor; StopTech Brake Rotor; Stoptech Drilled/Slotted Rotor
Product Attributes
| Discard Thickness | 0.972 IN |
| Discard Thickness | 24.700 MM |
| Nominal Thickness | 1.012 IN |
| Nominal Thickness | 25.700 MM |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.470 IN |
| Stud Thread Diameter | 12.000 MM |
| Outside Diameter | 12.126 IN |
| Outside Diameter | 308.000 MM |
| Height | 4.094 IN |
| Height | 104.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | X Drilled |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.75 MM |
| Center Hole Diameter | 3.413 IN |
| Center Hole Diameter | 86.70 MM |
| Mounting Bolt Hole Circle Diameter | 5.315 IN |
| Mounting Bolt Hole Circle Diameter | 135.00 MM |
| Stud/Lug Hole Quantity | 5 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Inner Bearing # [cntrc] | 410.91018 |
| Inner Seal # [cntrc] | 417.650 |
| Misc Holes [cntrc] | 5 |
| Outer Bearing # [cntrc] | 410.91012 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] | 12.270 KG |
| Weight [cntrc] | 27.000 LB |
| Disc Mounting | Hub & Rotor |
| Inner Bearing | 410.91018 |
| Inner Seal | 417.650 |
| Misc Holes | 5 |
| Outer Bearing | 410.91012 |
| Vane Style | Straight |
| Weight | 12.270 KG |
| Weight | 27.000 LB |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890271642 |
Fits Vehicles
- Ford F-150 (1997-1999)
