(888) 312-8812 Login SignupSTOPTECH 126.04001CSL StopTech Sport Slotted Cryo Brake Rotor; Front and Rear Left
Tap to view 4 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
STOPTECH 126.04001CSL Part Description
Manufacturer
Product Description

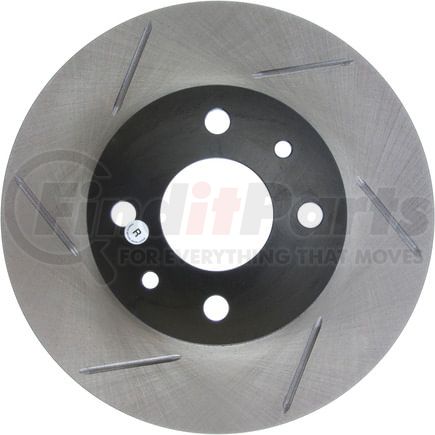

StopTech Sport Slotted Cryo Brake Rotor; Front and Rear Left
Application Summary
1996 - 2000 Alfa Romeo 146, 2009 - 2019 Fiat 500, 2007 - 2012 Fiat Panda, 2015 - 2017 Ram 700
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and service life
Sport Rotor; StopTech; StopTech Rotor; Stop Tech Rotor; Stop-Tech Sport Rotor; StopTech Sport Rotor; StopTech Brake Rotor
STOPTECH 126.04001CSL Specifications
Product Attributes
| Discard Thickness | 9.200 MM |
| Nominal Thickness | 0.433 IN |
| Hat Finish | Coated |
| Overall Height | 40.000 MM |
| Outside Diameter | 240.300 MM |
| ABS Tone Ring Included | No |
| Surface Type | Slotted |
| Solid Or Vented Type Rotor | Solid |
| Bearings Included | No |
| Center Hole Diameter | 59.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.858 IN |
| Stud/Lug Hole Quantity | 4 |
| Stud/Lug Hole Diameter | 0.524 IN |
| California Proposition 65 Text [basic] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 3.550 |
| Weight [cntrc] Lbs | 7.800 |
| Overall Height | 1.575 IN |
| Disc Mounting | Floating |
| Misc Holes | 2 |
| Weight | 7.800 |
| Stud/Lug Hole Diameter | 13.300 MM |
| Outside Diameter | 9.461 IN |
| Discard Thickness | 0.362 IN |
| Nominal Thickness | 11.000 MM |
| Mounting Bolt Hole Circle Diameter | 98.000 MM |
| Center Hole Diameter | 2.323 IN |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00822903835400 |
STOPTECH 126.04001CSL Fits Vehicles
- Ram 700 (2015-2017)
- Fiat 500 (2009-2017, 2019)
- Fiat Panda (2007-2009, 2011-2012)
