STOPTECH 120.66045CRY Part Description
Manufacturer
Product Description

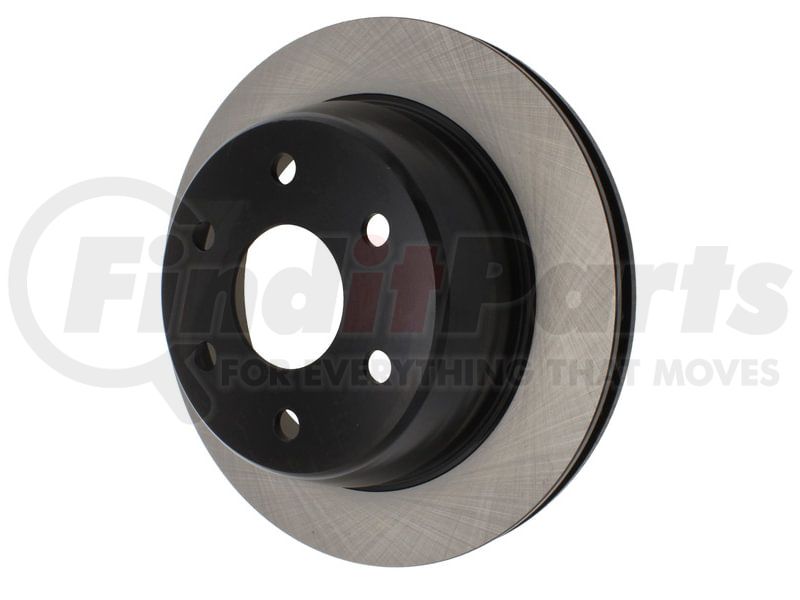

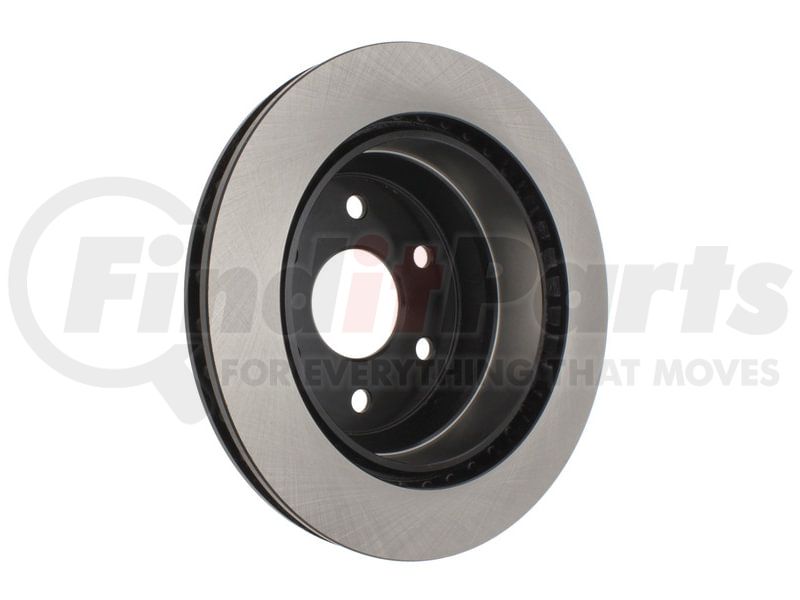

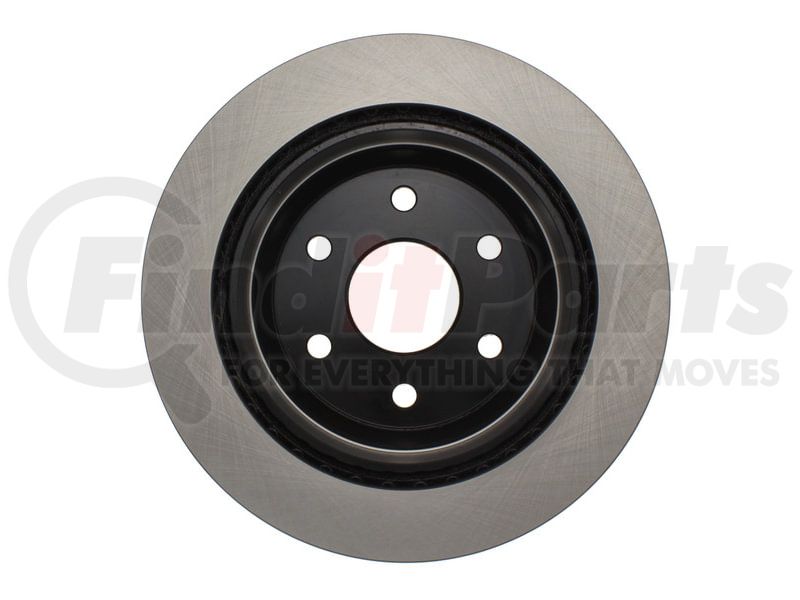

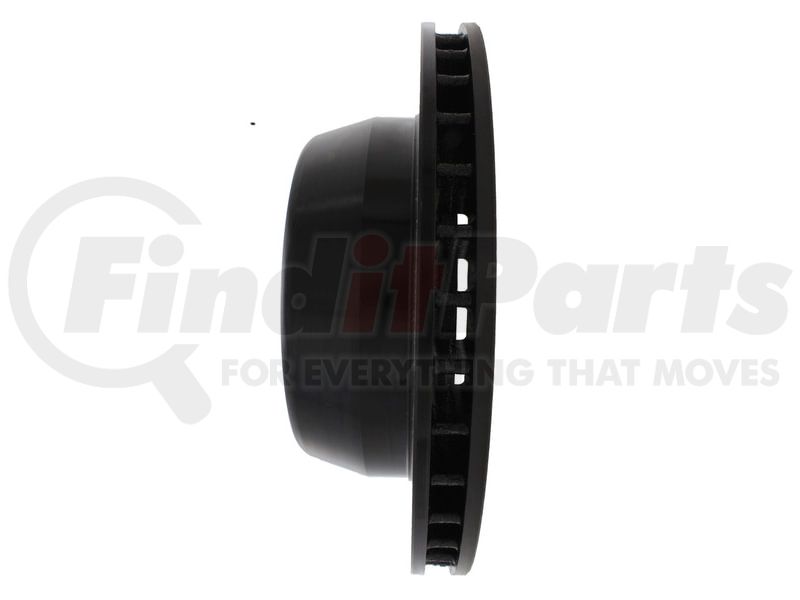

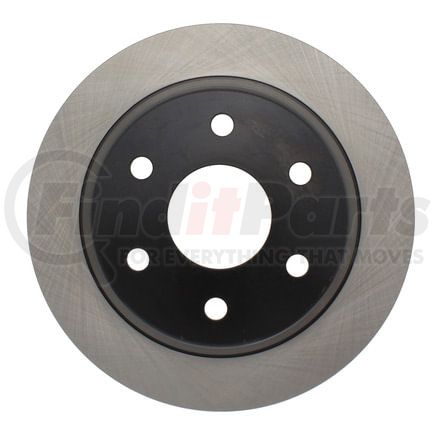

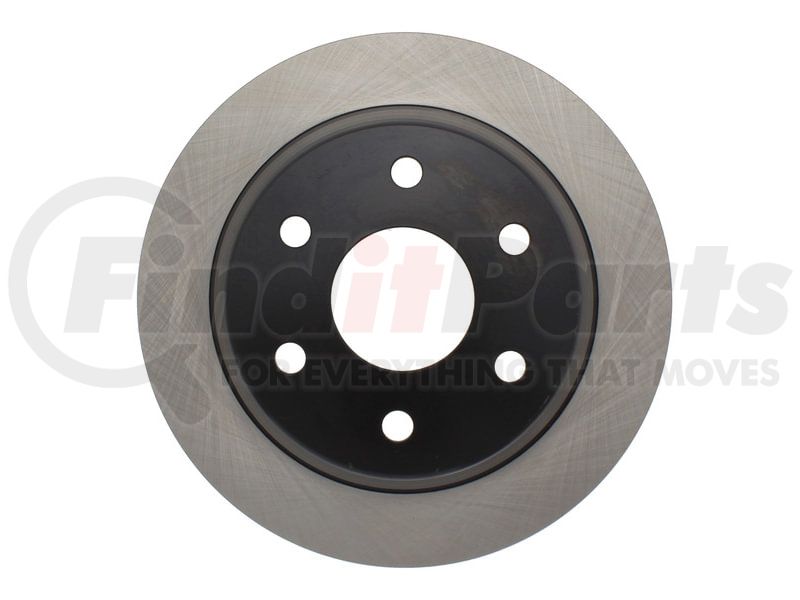

StopTech Premium Cryostop Rotor; Rear
Application Summary
2002 - 2006 Cadillac Escalade, 2003 - 2006 Cadillac Escalade ESV, 2002 - 2006 Cadillac Escalade EXT, 2002 - 2006 Chevrolet Avalanche 1500, 2003 - 2014 Chevrolet Express 1500, 2001 - 2007 Chevrolet Silverado 1500, 2007 - 2007 Chevrolet Silverado 1500 Classic, 2000 - 2006 Chevrolet Suburban 1500, 2000 - 2006 Chevrolet Tahoe, 2003 - 2014 GMC Savana 1500, 2001 - 2006 GMC Sierra 1500, 2003 - 2003 GMC Sierra 1500 HD, 2000 - 2006 GMC Yukon, 2000 - 2006 GMC Yukon XL 1500
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
StopTech; StopTech Rotors; Stop Tech; StopTech Rotor; Centric Parts; CentricParts Rotors; StopTech Break Rotors; Stoptech Brake Rotors; premium Cryostop rotor; cryostop rotors
STOPTECH 120.66045CRY Specifications
Product Attributes
| Discard Thickness | 1.122 IN |
| Nominal Thickness | 30.000 MM |
| Hat Finish | Coated |
| Overall Height | 3.760 IN |
| Outside Diameter | 329.700 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 210.100 MM |
| Bearings Included | No |
| Center Hole Diameter | 3.094 IN |
| Mounting Bolt Hole Circle Diameter | 5.500 IN |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 0.650 IN |
| California Proposition 65 Text [basic] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating / DIH |
| Max Pb Drum Dia [cntrc] In | 8.331 |
| Max Pb Drum Dia [cntrc] Mm | 211.600 |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 9.200 |
| Weight [cntrc] Lbs | 20.250 |
| Nominal Thickness | 1.181 IN |
| Overall Height | 95.500 MM |
| Disc Mounting | Floating / DIH |
| Maximum Drum Diameter | 8.331 |
| Misc Holes | 0 |
| Vane Style | Straight |
| Weight | 9.200 |
| Discard Thickness | 28.500 MM |
| Stud/Lug Hole Diameter | 16.500 MM |
| Outside Diameter | 12.980 IN |
| Nominal Drum Diameter | 8.272 IN |
| Center Hole Diameter | 78.600 MM |
| Mounting Bolt Hole Circle Diameter | 139.700 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890467991 |
STOPTECH 120.66045CRY Fits Vehicles
- Cadillac Escalade EXT (2002-2006)
- Cadillac Escalade ESV (2003-2006)
- GMC Yukon XL 1500 (2000-2006)
- GMC Yukon (2000-2006)
- GMC Sierra 1500 (2001-2006)
- GMC Savana 1500 (2003-2014)
- Chevrolet Tahoe (2000-2006)
- Chevrolet Suburban 1500 (2000-2006)
- Chevrolet Silverado 1500 (2001-2005)
- Chevrolet Express 1500 (2003-2014)
- Chevrolet Avalanche 1500 (2002-2006)
- Cadillac Escalade (2002-2006)
