(888) 312-8812 Login SignupFLEETGUARD LF689 Engine Oil Filter - 4.22 in. Height, 3.67 in. (Largest OD), Chrysler 3549957
Tap to view 2 more
MSRP: $17.01
$1499
Save $2.02
Limited availability at this price!
In Stock
Get it by Thursday, Feb 19
FLEETGUARD LF689 Part Description
Manufacturer
Product Description
Lube, Full-Flow Spin-On
Features & Benefits
- Compact dimensions support installations with limited filter clearance
- Specified sizing matches Chrysler 3549957 oil filter applications
- Media arrangement spreads contaminant loading across the element
- Oil circulation remains consistent through the filter body
- Outer shell support maintains element stability as conditions vary

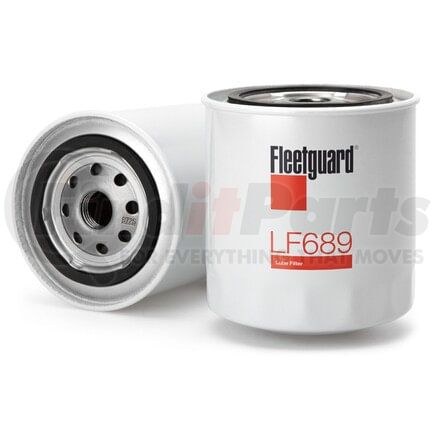

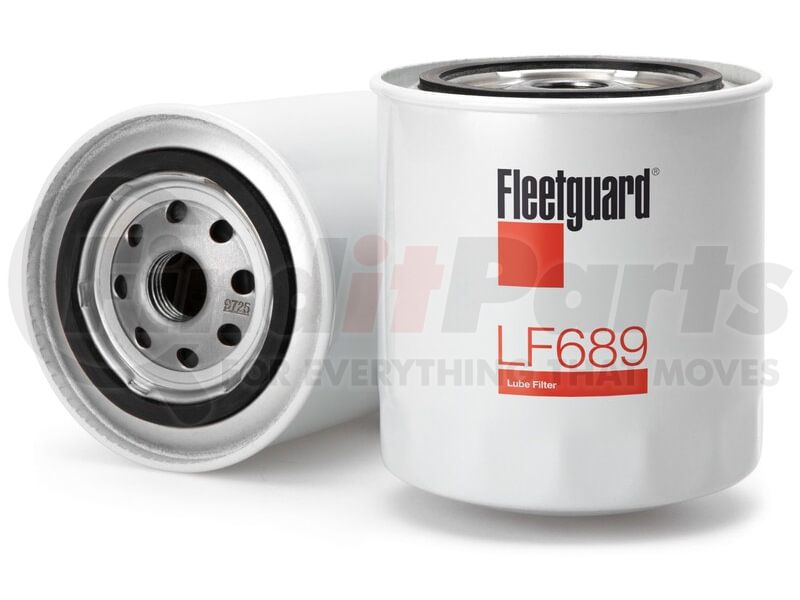

Fleetguard Engine Oil Filter
Some engine installations require a shorter oil filter without compromising filtration capacity, and the Fleetguard Engine Oil Filter is specified for those layouts. Measuring 4.22 inches in height with a 3.67-inch diameter, this spin-on filter matches Chrysler 3549957 requirements where clearance around the filter mount is limited. The internal media is arranged to distribute contaminant loading across the element while allowing oil to circulate at the required rate. A rigid outer shell supports the media pack as oil temperature and pressure change during operation. The Fleetguard LF689 filter is used where available space at the oil filter mount is restricted.
FLEETGUARD LF689 Specifications
Product Attributes
| Height | 4.22 in. (107.19 mm) |
| Bypass Relief Valve Setting | 10.01 psi (69 kPa) |
| Outside Diameter (Largest) | 3.67 in. (93.22 mm) |
| Standpipe | NO |
| Thread Size | 3/4-16 UNF-2B |
| BPV Setting | 69 kPa (10.01 PSI) |
| Largest Od | 93.17 mm |
| Overall Height | 4.224 in |
| Gasket Inside Diameter | 2.4618061 IN |
| Gasket Outside Diameter | 2.8338526 IN |
| Height | 4.224018029 in |
| Largest Outside Diameter | 3.7873940000000004 IN |
| Gasket Inside Diameter | 2.4618061 IN |
| Gasket Outside Diameter | 2.8338526 IN |
| Height | 4.224018029 in |
| Largest Outside Diameter | 3.7873940000000004 IN |
| Gasket Inside Diameter | 2.4618061 IN |
| Gasket Outside Diameter | 2.8338526 IN |
| Height | 4.224018029 in |
| Largest Outside Diameter | 3.7873940000000004 IN |
Additional Information
| Warranty Distance | 100000 |
| Warranty Distance UOM | DH |
| Warranty Time | 1 |
| Warranty Time UOM | YR |
| UPC | 00638217109522 |
FLEETGUARD LF689 Cross References
FLEETGUARD LF689 Customer Reviews
No reviews yet
Be the first to review this product!
FLEETGUARD LF689 Manufacturer Information
Since 1987, Fleetguard® has been one of the world's leaders in filtration solutions for both on- and off-highway applications. Whether it's air, fuel, oil, or hydraulic filtration, Fleetguard filters provide superior protection against contaminants for engines and sensitive equipment in the agriculture, construction, commercial vehicle, marine, mining, and power generation industries. Each filter is fitted with high-quality filter media for longer service life as well as a more compact design to accommodate shrinking engine compartments found in modern vehicles. All products also undergo extensive performance tests and strict quality control procedures to ensure durability and consistent performance, even in the most demanding operating conditions.
