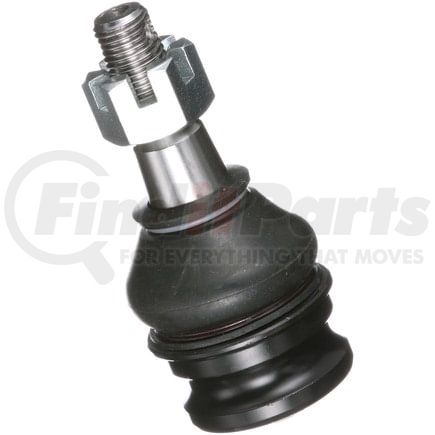

DELPHI TC5375 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5375 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 1.772 IN |
| Maximum Outside Diameter | 45.00 MM |
| Color | Black |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 45 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 4.043 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.22 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| Stud Tapered End 2 Diameter | 0.675 IN |
| Stud Tapered End 2 Diameter | 17.15 MM |
| Stud Tapered End 1 Diameter | 0.827 IN |
| Stud Tapered End 1 Diameter | 21 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 4.040 IN |
| Length | 102.62 MM |
| Stud Thread Diameter | 0.55 IN |
| Height | 102.69 MM |
| Stud Thread Length | 30.99 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604290507 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC5375 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-7714 |
| DORMAN | BJ72095, BJ72095PR |
| MEVOTECH | MS80503 |
| MOOG Chassis Products | K500200 |
| N/A | 20206XA002, 20202 XA01B9E, 20202 XA00B9E, MS80503, BJ72095PR, JBJ593, GS80503, BJ72095, 610.47005 |
| Subaru | 20206 XA000, 20206 XA001 |
DELPHI TC5375 Fits Vehicles
- Subaru Ascent (2019-2023)
- Subaru Tribeca (2008-2014)
- Subaru B9 Tribeca (2006-2007)
