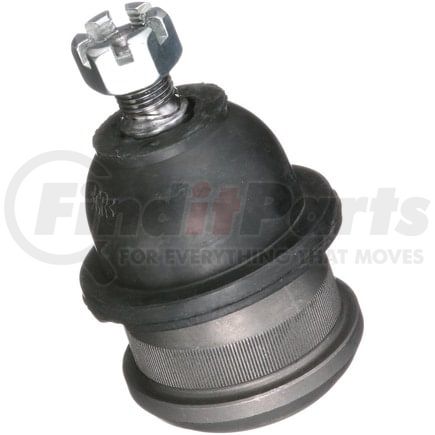

Delphi TC5368 - Ball Joint
$2599
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.303 IN |
| Maximum Outside Diameter | 58.50 MM |
| Color | Gray |
| Stud Thread Diameter | 0.563 IN |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 58.5 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 4.173 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 0.827 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.125 IN |
| Stud Tapered End 2 Diameter | 0.681 IN |
| Stud Tapered End 2 Diameter | 17.3 MM |
| Stud Tapered End 1 Diameter | 0.787 IN |
| Stud Tapered End 1 Diameter | 20 MM |
| Stud Threads Per Inch | 18 |
| Length | 106.00 MM |
| Length | 4.170 IN |
| Stud Thread Diameter | 14.3 MM |
| Height | 105.99 MM |
| Stud Thread Length | 21.01 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604290118 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
- MOOG Chassis Products K5103
- MOOG Chassis Products K5333
- General Motors 19144074
- General Motors 3875067
- General Motors 5678681
- General Motors 5693552
- General Motors 7802113
- General Motors 7804845
- General Motors 9740570
- General Motors 9741458
- General Motors 9747302
- General Motors 9757826
- TRW JBJ897
- GK5103
- B5103
- 535-657
- MK5103
Fits Vehicles
- Pontiac Tempest (1964-1970)
- Buick Sportwagon (1964-1972)
- Buick Special (1964-1969)
- Pontiac Acadian (1968-1971)
- Pontiac Ventura (1971-1974)
- Pontiac LeMans (1964-1972)
- Pontiac GTO (1964-1972)
- Pontiac Grand Prix (1969-1972)
- Pontiac Firebird (1967-1969)
- Oldsmobile Vista Cruiser (1964-1972)
- Oldsmobile Omega (1973-1974)
- Oldsmobile F85 (1964-1972)
- Oldsmobile Cutlass Supreme (1967-1972)
- Oldsmobile Cutlass (1964-1972)
- Oldsmobile 442 (1965-1971)
- GMC Sprint (1971-1972)
- Chevrolet Nova (1969-1974)
- Chevrolet Malibu (1964-1967)
- Chevrolet Monte Carlo (1970-1972)
- Chevrolet El Camino (1964-1972)
- Chevrolet Chevy II (1968)
- Chevrolet Chevelle (1964-1972)
- Chevrolet Camaro (1967-1969)
- Buick Skylark (1964-1972)
- Buick GS 350 (1968-1969)
- Buick GS (1970-1972)
- Buick GS 455 (1970-1972)
- Buick GS 400 (1968-1969)
- Buick Gran Sport (1965-1967)
- Buick Apollo (1973-1974)
