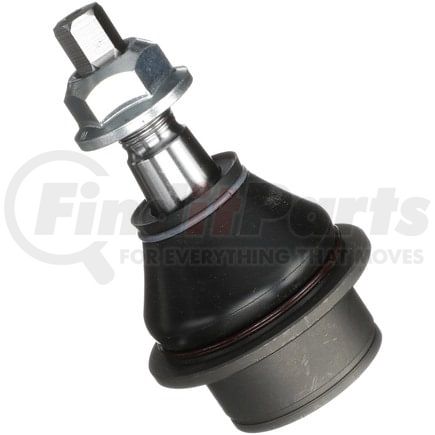

(888) 312-8812 Login SignupDELPHI TC5290 Ball Joint
Tap to view 5 more
$4299
Limited availability at this price!
In Stock
Get it by Friday, Dec 26
DELPHI TC5290 Part Description
DELPHI TC5290 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Color | Gray |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 48.5 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 2.992 IN |
| Mounting Bolt Length | 76.00 MM |
| Washers Included | No |
| Height | 3.740 IN |
| Height | 95.00 MM |
| Nuts Included | No |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.472 IN |
| Mounting Bolt Shank Diameter | 12.00 MM |
| Mounting Bolt Head Diameter | 0.945 IN |
| Mounting Bolt Head Diameter | 24.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.75 MM |
| Mounting Bolt Thread Length | 1.378 IN |
| Mounting Bolt Thread Length | 35.00 MM |
| Mounting Bolt Thread Diameter | 12.00 MM |
| Mount Plate Included | No |
| Tapered Stud | No |
| Mounting Bolt Thread Diameter | 0.470 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604287705 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC5290 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | K80605 |
| Chrysler | 5161 685AB, 5161685AA |
| MAS Industries | 536-371 |
| TRW | JBJ865 |
| N/A | 10480605, 101-6811, MK80605, GK80605, TXK80605, BJ81105 |
DELPHI TC5290 Fits Vehicles
- Ram Dakota (2011)
- Mitsubishi Raider (2006-2009)
- Dodge Dakota (2005-2010)
