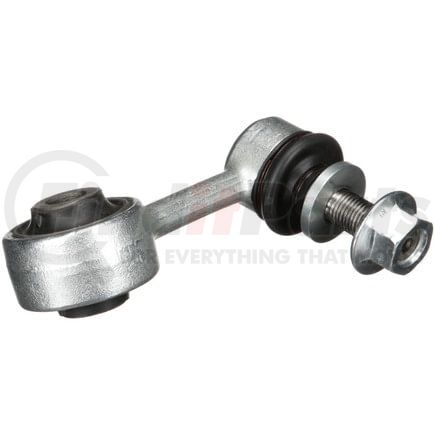

DELPHI TC5276 Part Description
Manufacturer
Product Description
Suspension Stabilizer Bar Link
Features & Benefits
- Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
- Delphi sway bar links are fatigue tested to avoid failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5276 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right |
| Material | Steel |
| Bushing Color | Black |
| Length | 95.00 MM |
| Length | 3.740 IN |
| End 1 Type | Bushing |
| End 2 Type | Ball Joint |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Bolt Thread Size | M14 |
| Width | 50 MM |
| Width | 1.969 IN |
| Washers Included | Yes |
| Height | 3.740 IN |
| Height | 95.00 MM |
| Grade Type | Standard Replacement |
| Bolts Included | No |
| Housing Material | Steel |
| Bolt Head Diameter | 14.00 MM |
| Weight | 0.27 lb |
| Bolt Length | 33.00 MM |
| Bolt Length | 1.300 IN |
| Bolt Thread Diameter | 0.550 IN |
| Bolt Thread Diameter | 14.00 MM |
| Locking Nuts Included | Yes |
| Bushing Inside Diameter | 14.20 MM |
| Bushing Inside Diameter | 0.560 IN |
| Bolt Head Diameter | 0.550 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604286906 |
| VMRS Code | 016004006 |
| UNSPSC | 25172001 |
DELPHI TC5276 Cross References
DELPHI TC5276 Fits Vehicles
- Toyota Land Cruiser (2008-2011, 2013-2021)
- Lexus LX570 (2008-2011, 2013-2021)
