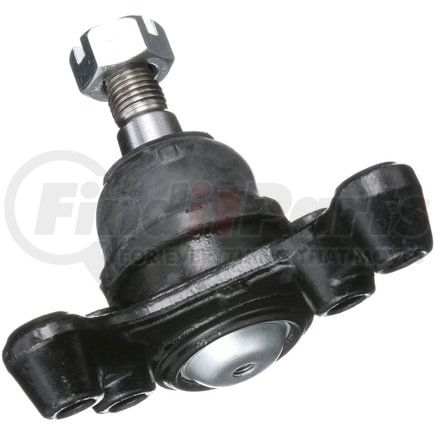

DELPHI TC5138 Ball Joint

★★★★★ (0)
Delphi TC5138 Suspension Ball Joint Ball Joint
DELPHI
Tap to view 2 more

$41.99

Limited availability at this price!

In Stock

Get as soon as Tuesday, Nov 24
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

DELPHI TC5138 Part Description

Manufacturer

DELPHI

Product Description

Ball Joint

Features & Benefits

  • Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
  • Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
  • Delphi machines to micron tolerances to guarantee durability and smooth joint operation
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TC5138 Specifications

Product Attributes

Item GradeStandard Replacement
Position(s)Front Right Upper
MaterialSteel
ColorBlack
Stud Thread Diameter0.55 IN
Stud Thread Diameter14 MM
Castle Nut IncludedYes
Grease Fitting IncludedNo
Suspension Grade TypeStandard Replacement
Bushings IncludedNo
Dust Boot IncludedYes
Ball Joint AssemblyYes
Width101.00 MM
TypeThreaded
Cotter Pin IncludedYes
Cotter Pin HoleYes
Mounting Hardware IncludedYes
Washers IncludedNo
Height3.46 IN
Height88.00 MM
Nuts IncludedNo
Mounting Hole Quantity4
AdjustableNo
GreaseableNo
Stud Thread Length0.87 IN
Stud Thread Length22.00 MM
Mounting TypeBolt-In
Distance Between Mounting Holes18.00 MM
Dust Boot MaterialRubber
Mounting Bolt Shank Diameter0.31 IN
Mounting Bolt Shank Diameter8.00 MM
Mounting Bolts IncludedYes
Mounting Bolt Thread Pitch1.25 MM
Mounting Bolt Thread Length1.37 IN
Mounting Bolt Thread Length35.00 MM
Mounting Bolt Thread Diameter0.310 IN
Tapered StudYes
Stud Taper Per Foot8 IN
Stud Thread Pitch1.5 MM
Length76.00 MM
Length2.99 IN
Mounting Bolt Thread Diameter7.87 MM
Maximum Outside Diameter42.00 MM
Thread DirectionClockwise (Right)
Pre-GreasedYes
Outside Diameter42.00 MM
Mounting Bolt Length35.00 MM
Bearing TypePlastic
Boot ColorBlack
Mounting Hole Diameter9.00 MM
Stud TypeThreaded
Mounting Bolt Head Diameter14.40 MM
Mount Plate IncludedNo
Stud Tapered End 2 Diameter18.00 MM
Stud Tapered End 1 Diameter15.80 MM
Retaining Ring IncludedYes
Maximum Outside Diameter1.65 IN
Width3.97 IN
Outside Diameter1.65 IN
Mounting Bolt Length1.37 IN
Mounting Hole Diameter0.35 IN
Distance Between Mounting Holes0.70 IN
Mounting Bolt Head Diameter0.56 IN
Stud Tapered End 2 Diameter0.70 IN
Stud Tapered End 1 Diameter0.62 IN

Additional Information

Harmonized Tariff Code (Schedule B)8708807000
Country of Origin (Primary)TR
Harmonized Tariff Code (HTS)8708806590
Warranty SpecialLimited
Warranty Special UOMLT
UPC00689604289822
VMRS Code016001014
UNSPSC25174203

DELPHI TC5138 Cross References

BrandPart Number
Beck/Arnley101-4775
DORMANB90257, BJ74158XL
MAS IndustriesB90257, BJ74158XL, BJ74158
MEVOTECHMK90257
MOOGK90257
MOOG Chassis ProductsK90257
N/AMK90257, GK90257, 610.044017
TRWJBJ7522
Toyota43350-39105

DELPHI TC5138 Fits Vehicles

  • Toyota Tacoma (1995-2004)
