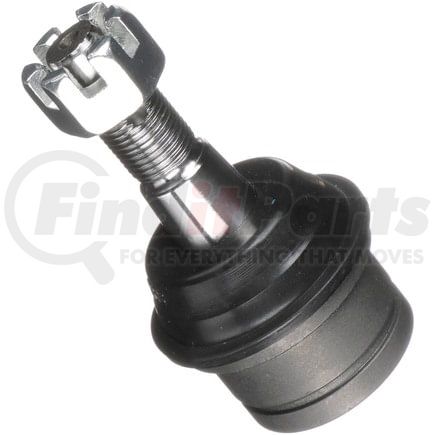

DELPHI TC3665 - Suspension Ball Joint - Front, Lower, Non-Adjustable, without Bushing, Non-Greaseable
$4999
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
DELPHI part description
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including Carbon black, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Ball Joint
Product Attributes
Item Grade | Standard Replacement |
Position(s) | Front Lower |
Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
Color | Gray |
Stud Thread Diameter | 16.0 MM |
Grease Fitting Included | No |
Bushings Included | No |
Dust Boot Included | Yes |
Ball Joint Assembly | Yes |
Width | 64.0 MM |
Cotter Pin Hole | No |
Mounting Hardware Included | Yes |
Washers Included | No |
Height | 4.331 IN |
Height | 110.0 MM |
Nuts Included | No |
Mounting Hole Quantity | 0 |
Adjustable | No |
Greasable | No |
4966 | 0.878 IN |
Stud Thread Length | 22.3 MM |
Mounting Type | Pressed |
Dust Boot Material | Choloroprene Rubber (CR) |
Mount Plate Included | No |
Tapered Stud | Yes |
9212 | 0.846 IN |
Stud Tapered End 2 Diameter | 21.5 MM |
9213 | 0.689 IN |
Stud Tapered End 1 Diameter | 17.5 MM |
Stud Thread Pitch | 1.5 MM |
Length | 64.0 MM |
Additional Information
Harmonized Tariff Code (HTS) | 8708806590 |
Warranty Special | Limited Lifetime |
Warranty Special UOM | LF |
Harmonized Tariff Code (Schedule B) | 8708807000 |
Country of Origin (Primary) | TR |
UPC | 00689604286210 |
VMRS Code | 016001015 |
UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Jeep Wrangler JK (2018)
- Jeep Wrangler (2007-2017)
- Jeep Grand Cherokee (1999-2004)
