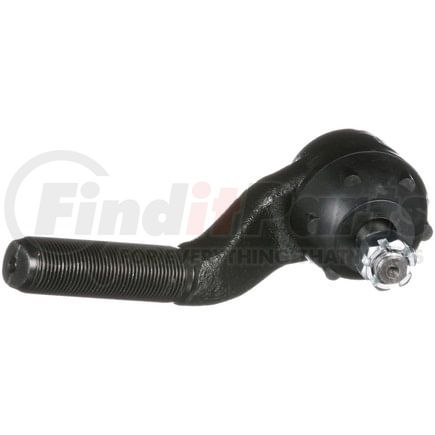

Delphi TA5275 - Tie Rod End
$4249
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Left Outer |
| Item Grade | Standard Replacement |
| Length | 143.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 62.5 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 19.05 MM |
| End 2 Thread Diameter | 0.750 IN |
| Height | 78.50 MM |
| Housing Material | Steel |
| Tube Diameter | 19.05 MM |
| Tube Diameter | 0.750 IN |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 1.08 lb |
| Cone Outside Diameter | 13.10 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| Length - Stud Center to End | 4.724 IN |
| Length - Stud Center to End | 120.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 18 |
| End 1 Threads Per Inch | 20 |
| End 1 Thread Diameter | 0.437 IN |
| End 1 Thread Diameter | 11.11 MM |
| Shank Length | 13.10 MM |
| Stud Length | 13.10 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.516 IN |
| Stud Length | 0.516 IN |
| Cone Outside Diameter | 0.516 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604290415 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Mercury Villager (1965)
- Mercury Comet (1965)
- Ford Ranchero (1964-1965)
- Ford Mustang (1964-1966)
- Ford Falcon Sedan Delivery (1963-1965)
- Ford Falcon (1965)
