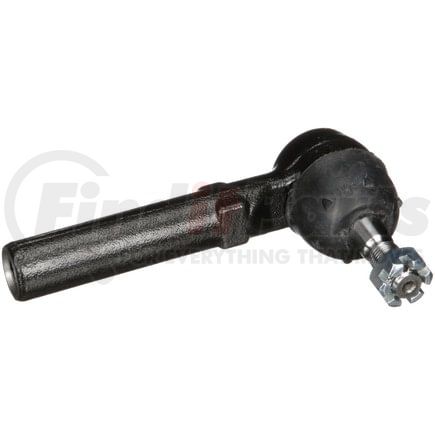

Need help? We're here!
(888) 312-8812 Login SignupDELPHI TA5207 Tie Rod End
Tap to view 8 more
$2999
Limited availability at this price!
In Stock
Get it by Wednesday, Jan 14
DELPHI TA5207 Part Description
DELPHI TA5207 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Length | 148.00 MM |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 39.5 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 95.00 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Tube Diameter | 0.866 IN |
| Tube Diameter | 22.00 MM |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 1.25 lb |
| Cone Outside Diameter | 15.00 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 4.961 IN |
| Length - Stud Center to End | 126.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 15.00 MM |
| Stud Length | 15.00 MM |
| Grade | Premium |
| Shank Length | 0.591 IN |
| Stud Length | 0.591 IN |
| Cone Outside Diameter | 0.591 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604288337 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA5207 Cross References
DELPHI TA5207 Fits Vehicles
- Cadillac Allante (1987-1991)
- Oldsmobile Toronado (1986-1991)
- Cadillac Seville (1986-1991)
- Cadillac Eldorado (1986-1991)
- Buick Riviera (1986-1991)
- Buick Reatta (1988-1991)
DELPHI TA5207 Customer Reviews
No reviews yet
Be the first to review this product!
