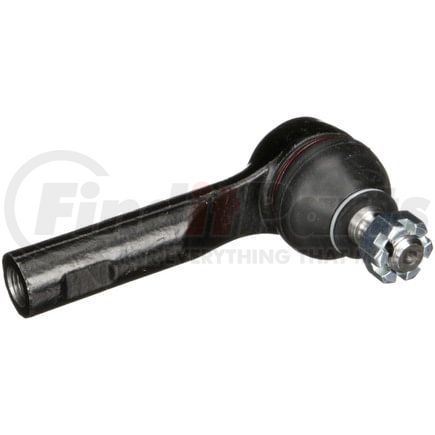

DELPHI TA5091 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5091 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Length | 125.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 50 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.472 IN |
| End 2 Thread Diameter | 12.00 MM |
| Height | 70.10 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 0.81 lb |
| Cone Outside Diameter | 0.504 IN |
| Cone Outside Diameter | 12.80 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.25 MM |
| End 1 Thread Pitch | 1.25 MM |
| Length - Stud Center to End | 2.008 IN |
| Length - Stud Center to End | 51.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 12.80 MM |
| Stud Length | 12.80 MM |
| Grade Type | Standard Replacement |
| Boot Color | Black |
| Shank Length | 0.504 IN |
| Stud Length | 0.504 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604283653 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA5091 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-3620, 101-4534 |
| DORMAN | T2814, T2814XL |
| Datsun/Nissan | 48520-2B003, 48520-2B025, 48520-35F25, 48520-4B000, 48520-4Z025, 48520-50A26, 4852053M25, 48520Q5200, 48520Q5601 |
| MEVOTECH | MES2814RL |
| MOOG Chassis Products | ES2333, ES2814RL |
| Mevotech | MES2333 |
| N/A | 48520-50A25, 48520-50A00, MES2814RL, T2814, 534-425, GES2814RL |
| TRW | JTE265, JTE266 |
DELPHI TA5091 Fits Vehicles
- Nissan Multi (1986-1988)
- Nissan Pulsar NX (1987-1990)
- Nissan 240SX (1989-1994)
- Nissan Sentra (1986-2006)
- Nissan Altima (1996-2001)
- Nissan 200SX (1995-1998)
