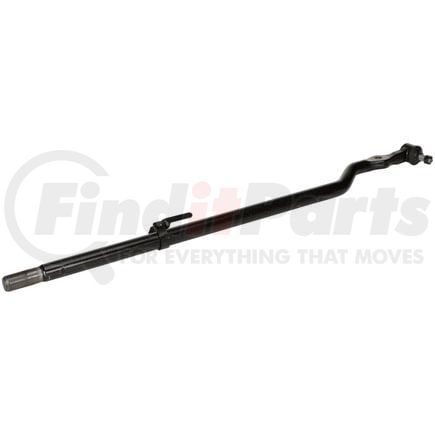

DELPHI TA2771 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA2771 Specifications
Product Attributes
| Position(s) | Right Outer |
| Item Grade | Standard Replacement |
| Length | 1159.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 53.5 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 14.00 MM |
| Height | 115.00 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 22.73 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Counterclockwise (Left) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 44.587 IN |
| Length - Stud Center to End | 1132.50 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Threads Per Inch | 16 |
| End 1 Thread Diameter | 1.375 IN |
| Grade Type | Standard Replacement |
| End 1 Thread Diameter | 34.92 MM |
| End 2 Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604299555 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
DELPHI TA2771 Cross References
DELPHI TA2771 Fits Vehicles
- Ford F-350 Super Duty (1999-2004)
- Ford F-250 Super Duty (1999-2004)
- Ford Excursion (2000-2005)
