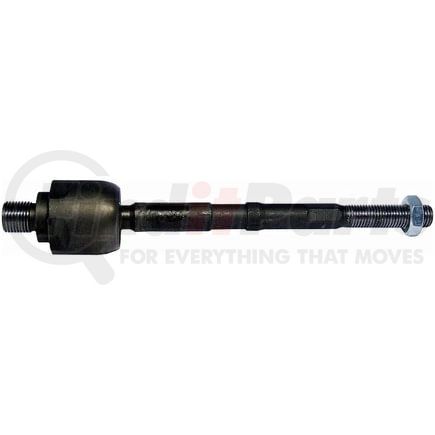

(888) 312-8812 Login SignupDELPHI TA2067 Tie Rod End
$1899
Limited availability at this price!
In Stock
Get it by Thursday, Feb 19
DELPHI TA2067 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA2067 Specifications
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Length | 216.30 MM |
| Color | Black and Gray |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Grease Fitting Included | No |
| Dust Boot Included | No |
| Width | 37 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 12.00 MM |
| Height | 216.30 MM |
| Housing Material | Steel |
| Tube Diameter | 0.571 IN |
| Tube Diameter | 14.50 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 1 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 6.898 IN |
| Length - Stud Center to End | 175.20 MM |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 16.00 MM |
| Pre-Greased | Yes |
| Grade Type | Standard Replacement |
| End 2 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 0.630 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604299562 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
DELPHI TA2067 Cross References
DELPHI TA2067 Fits Vehicles
- Pontiac Wave5 (2007)
- Pontiac G3 (2010)
- Chevrolet Aveo5 (2006-2011)
- Suzuki Swift+ (2004-2010)
- Pontiac Wave (2005-2008)
- Chevrolet Aveo (2004-2011)
