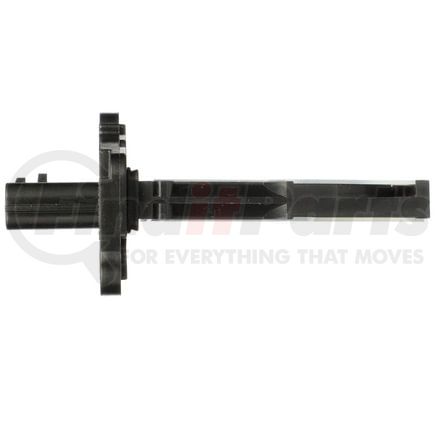

(888) 312-8812 Login SignupDELPHI AF10539 Mass Air Flow Sensor
$48899
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
DELPHI AF10539 Part Description
DELPHI AF10539 Specifications
Product Attributes
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Item Grade | Premium |
| Color | Black and Silver |
| Housing Included | No |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 4 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 46.25 MM |
| Sensor Casing Width | 42 MM |
| Voltage | 5.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 40.00 MM |
| Mounting Hole Diameter | 0.1 IN |
| Seal Outside Diameter | 14.4 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 1.8 IN |
| Sensor Casing Width | 1.6 IN |
| Bolt Hole Center To Bolt Hole Center | 1.50 IN |
| Mounting Hole Diameter | 4.5 MM |
| Seal Outside Diameter | 0.5 IN |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 9026802000 |
| UPC | 00689604294840 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10539 Part Interchanges
| Brand | Part Number |
|---|---|
| Datsun/Nissan | 22680-5RB0A, 22680-BV80B |
| N/A | 214792, MA495, MAF0133, MA1289, 86-50089, 74-50089, 5S15667, MAS0457, MF21343N |
DELPHI AF10539 Fits Vehicles
- Nissan Versa (2019-2021)
- Nissan Kicks (2018-2021)
- Nissan Versa Note (2018-2019)
- Nissan Rogue Sport (2017-2021)
- Nissan Rogue (2017-2020)
- Nissan Pathfinder (2017-2020)
- INFINITI QX60 (2017-2020)
- Nissan Altima (2016-2018)
- Nissan Sentra (2016-2019)
- Nissan Maxima (2016-2021)
- Nissan Juke (2015-2017)
